Model Year
1997
Fuel Type
Diesel
Number of Hours
TBC
Lying
vigo
Heads
3
Nominal Length
75 feet
Length At Water Line
54.25 feet
Length Overall
75 feet
Beam
18 feet
You can now part exchange your Car, Motorhome & Boat with Burton Waters.
FIND OUT MORE
Request video tour

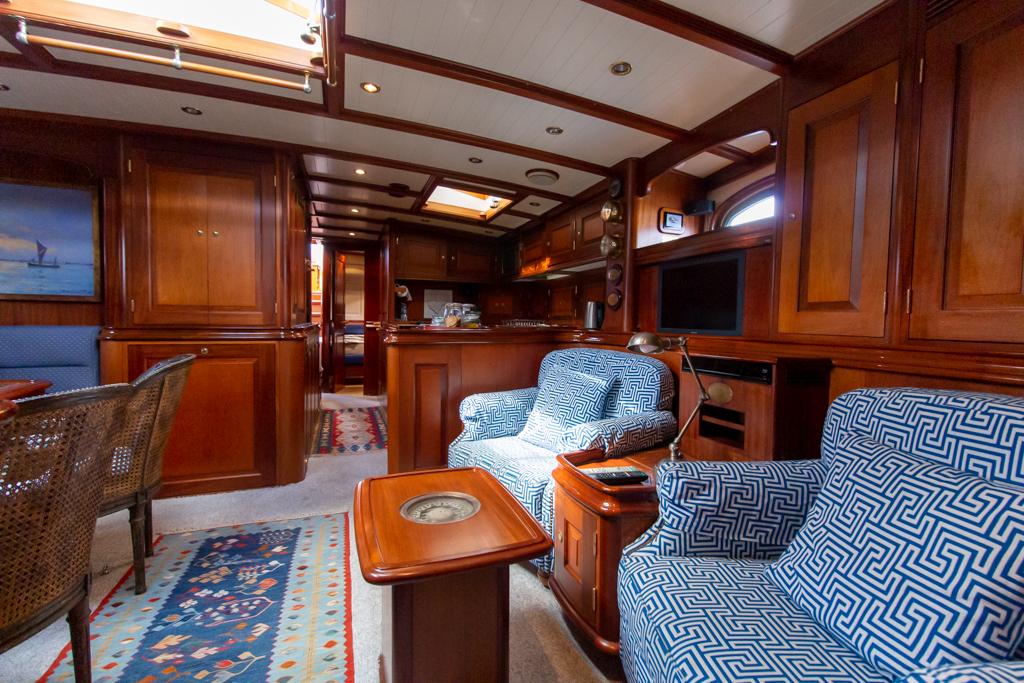

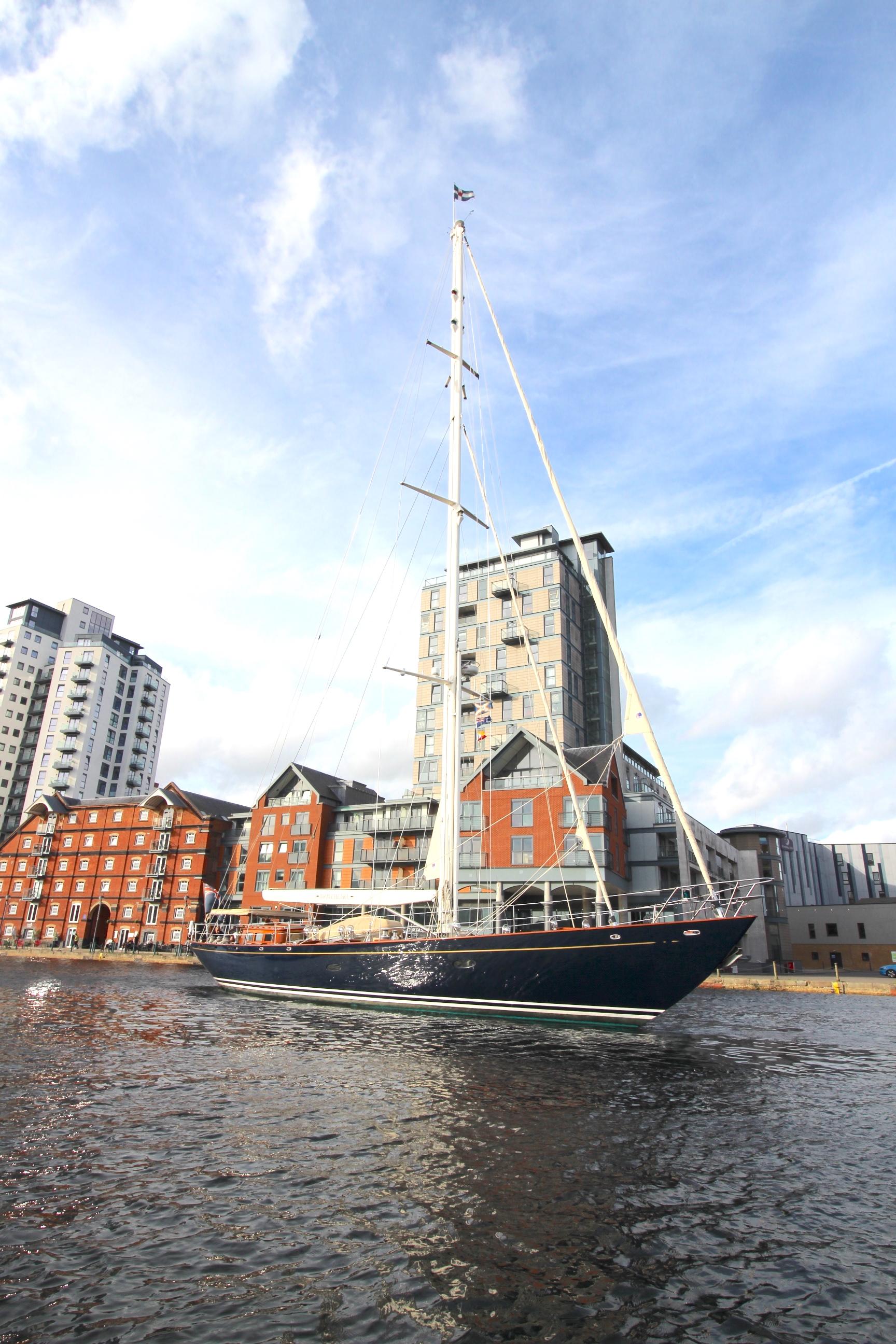

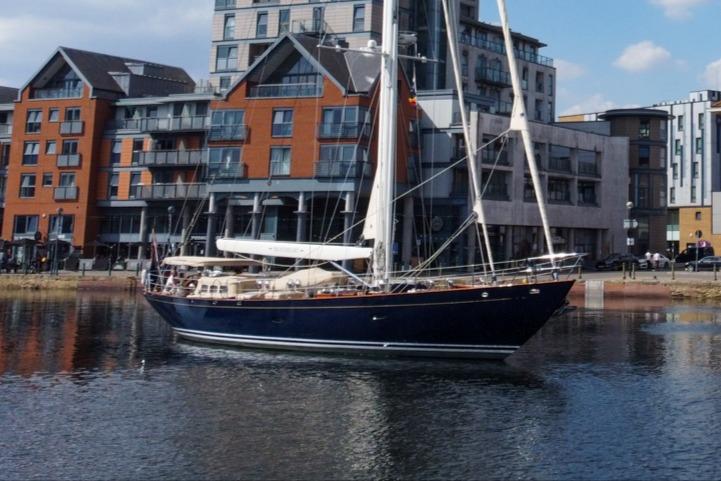

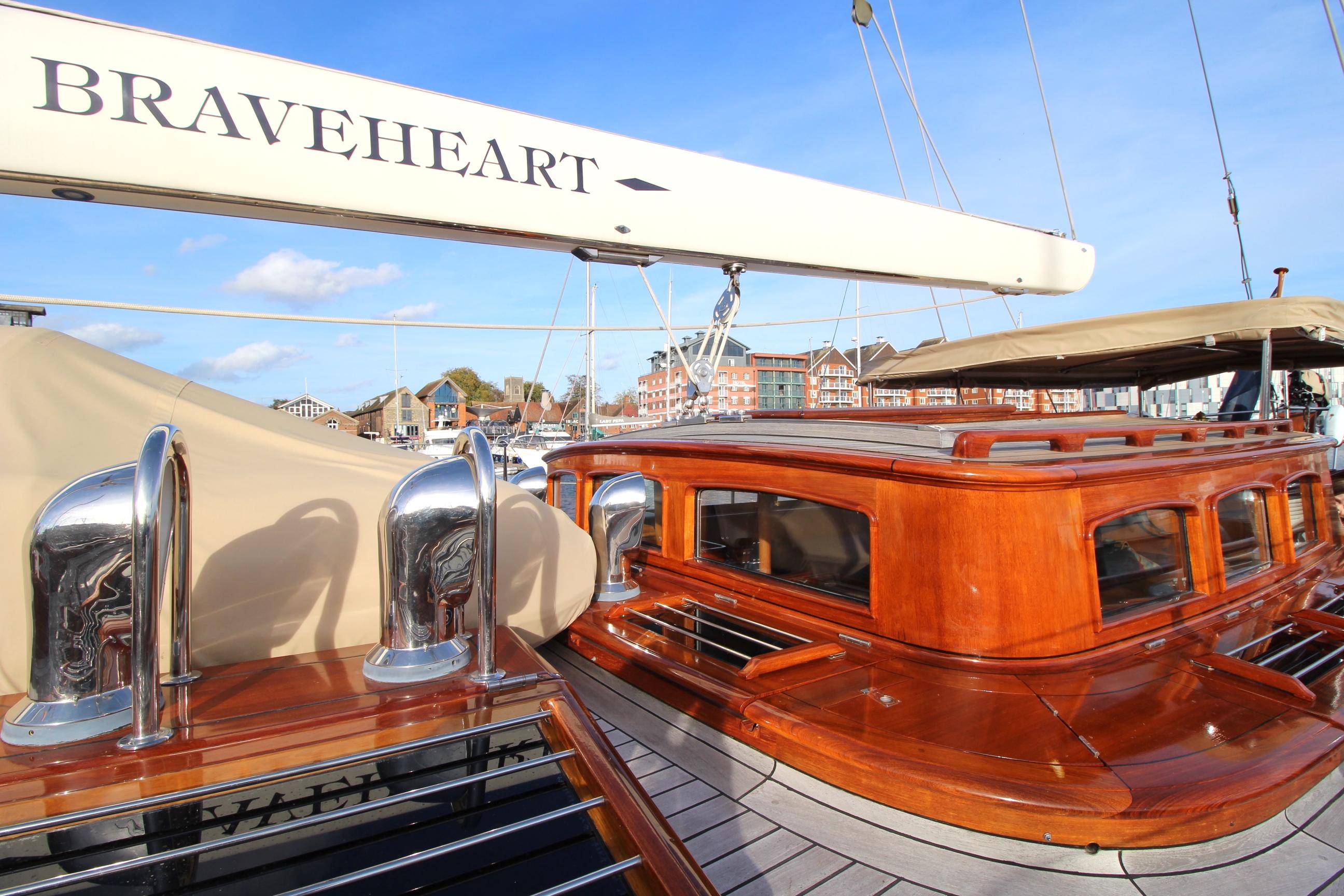

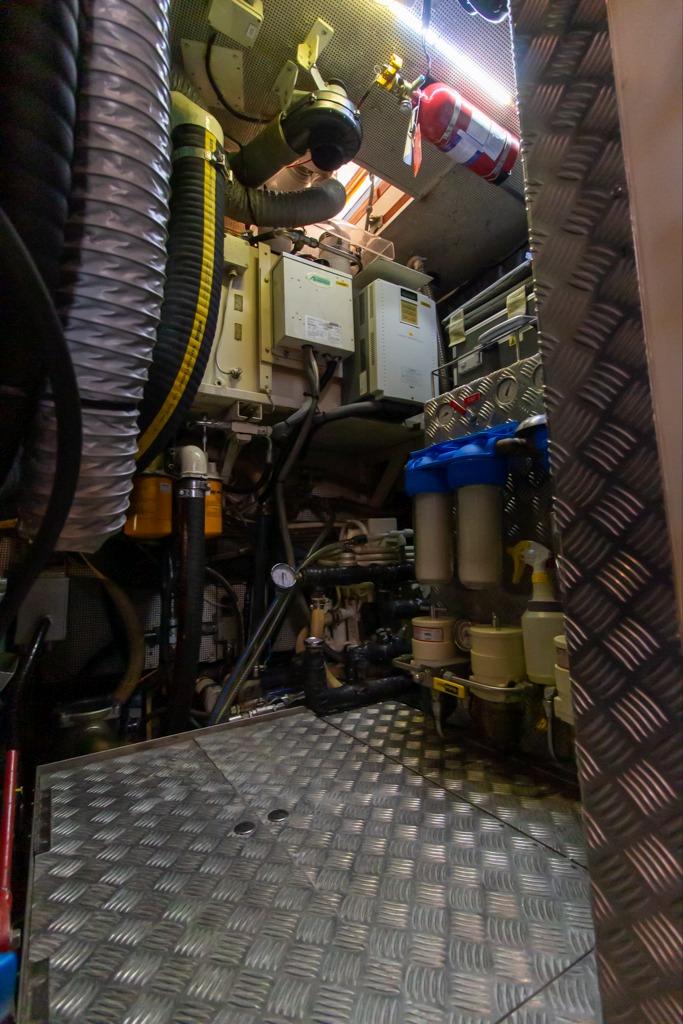

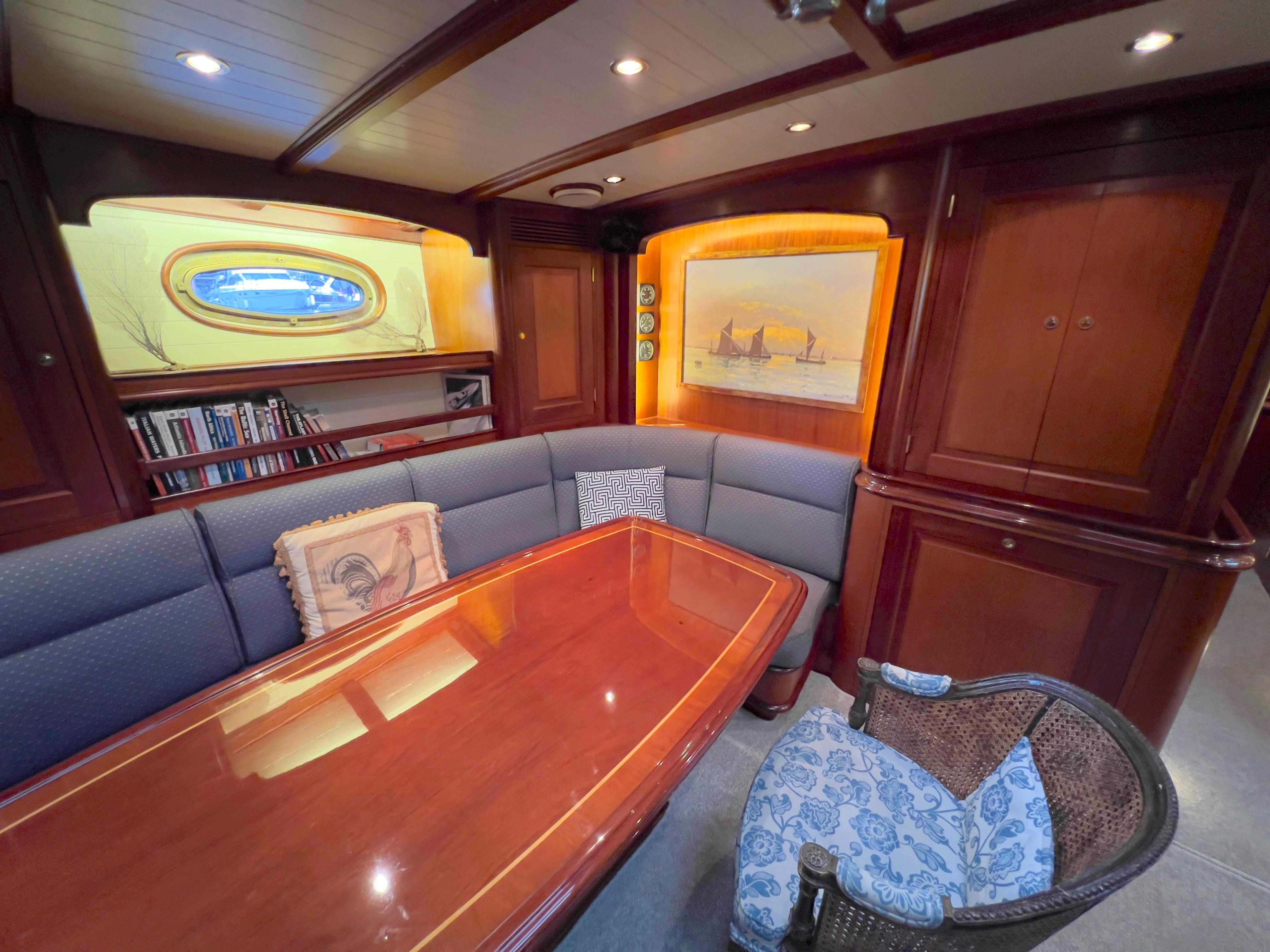

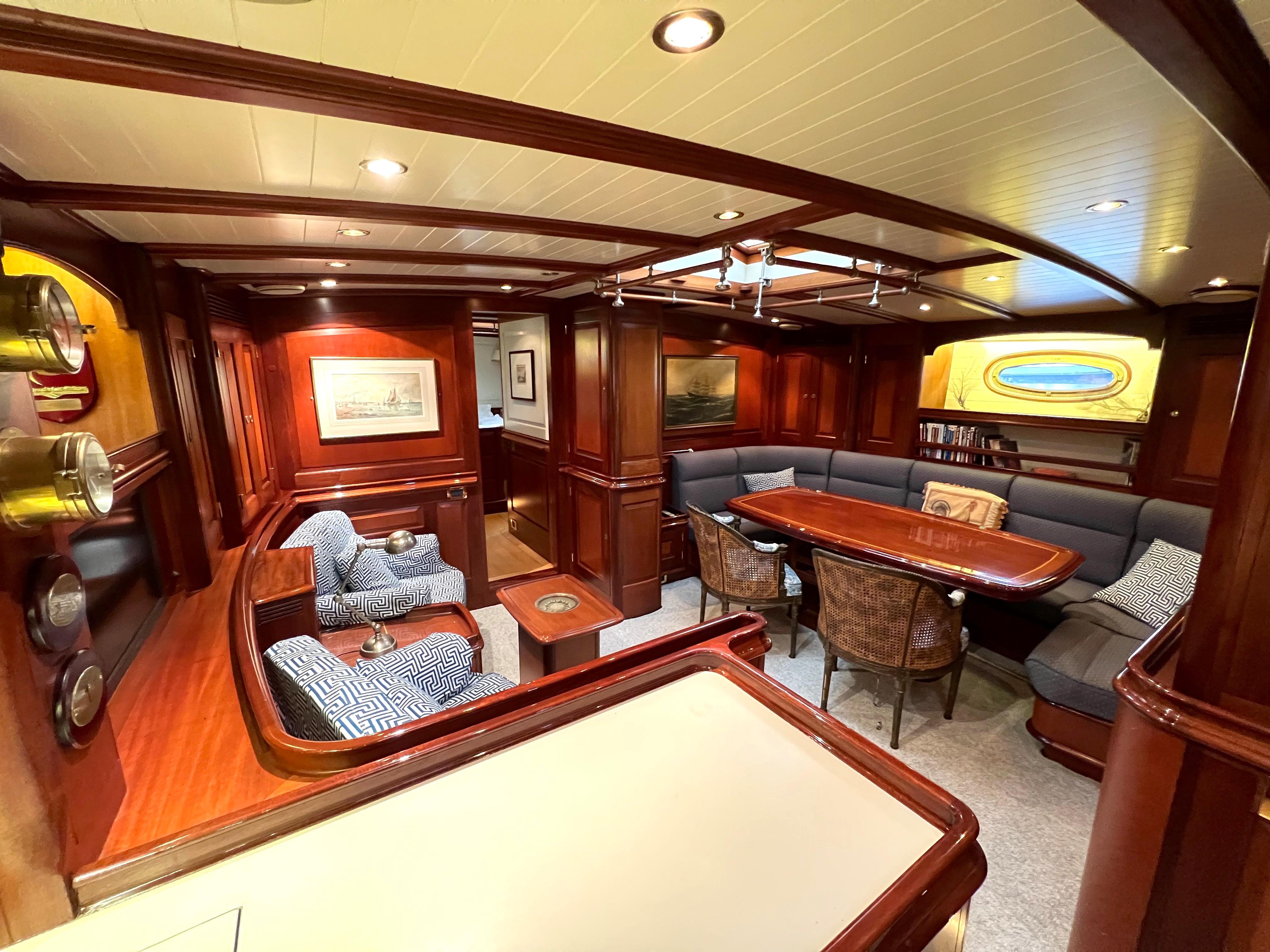

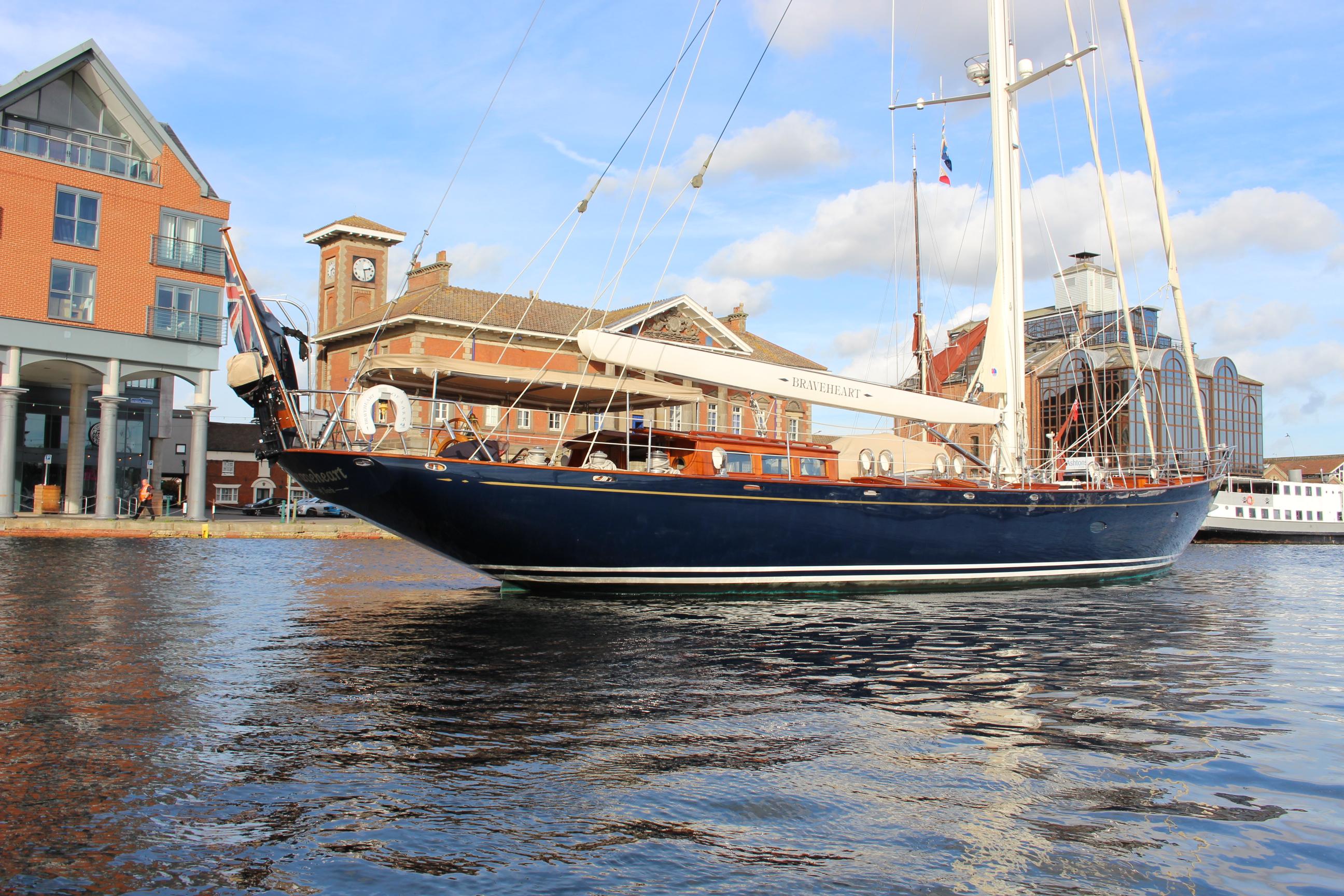

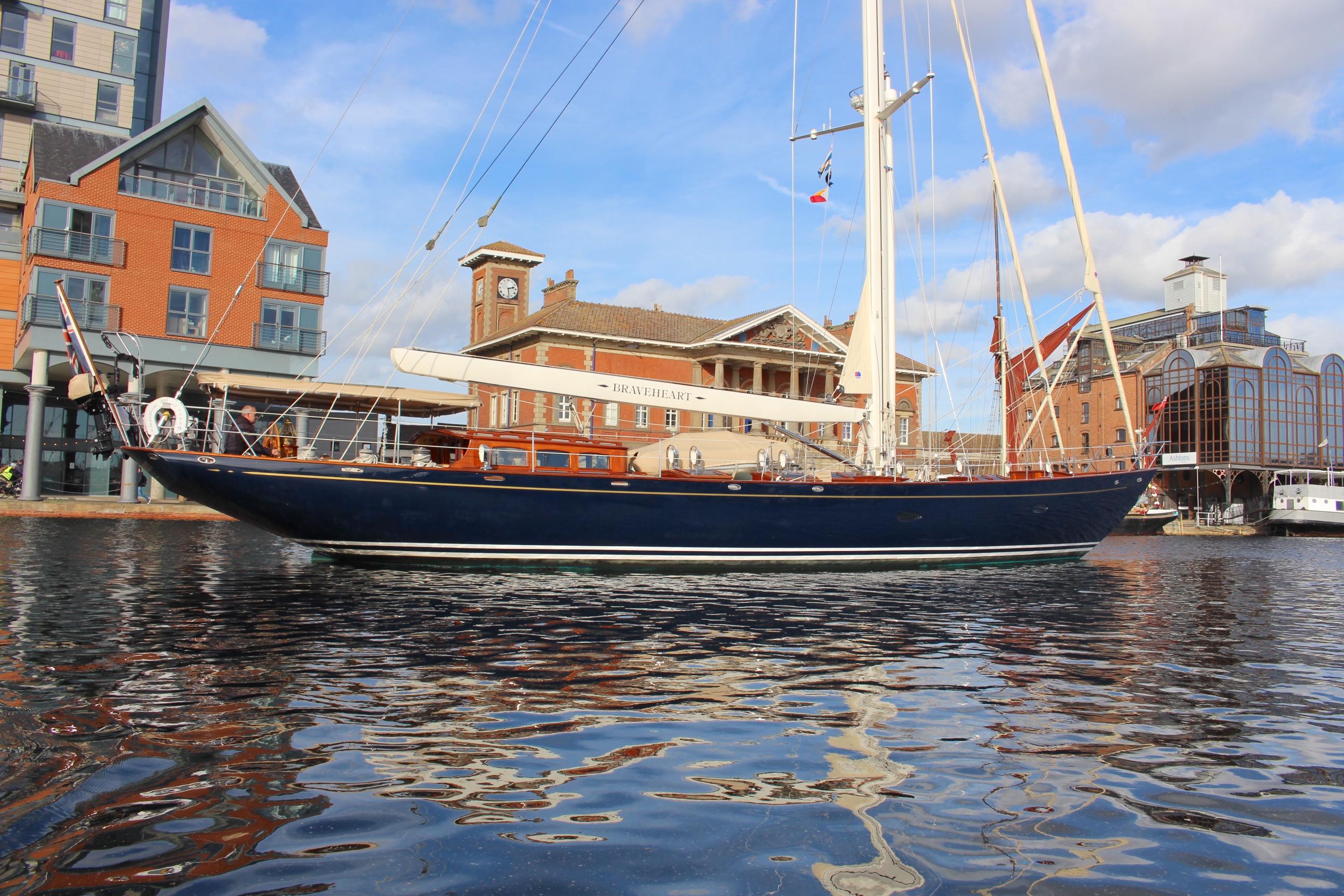

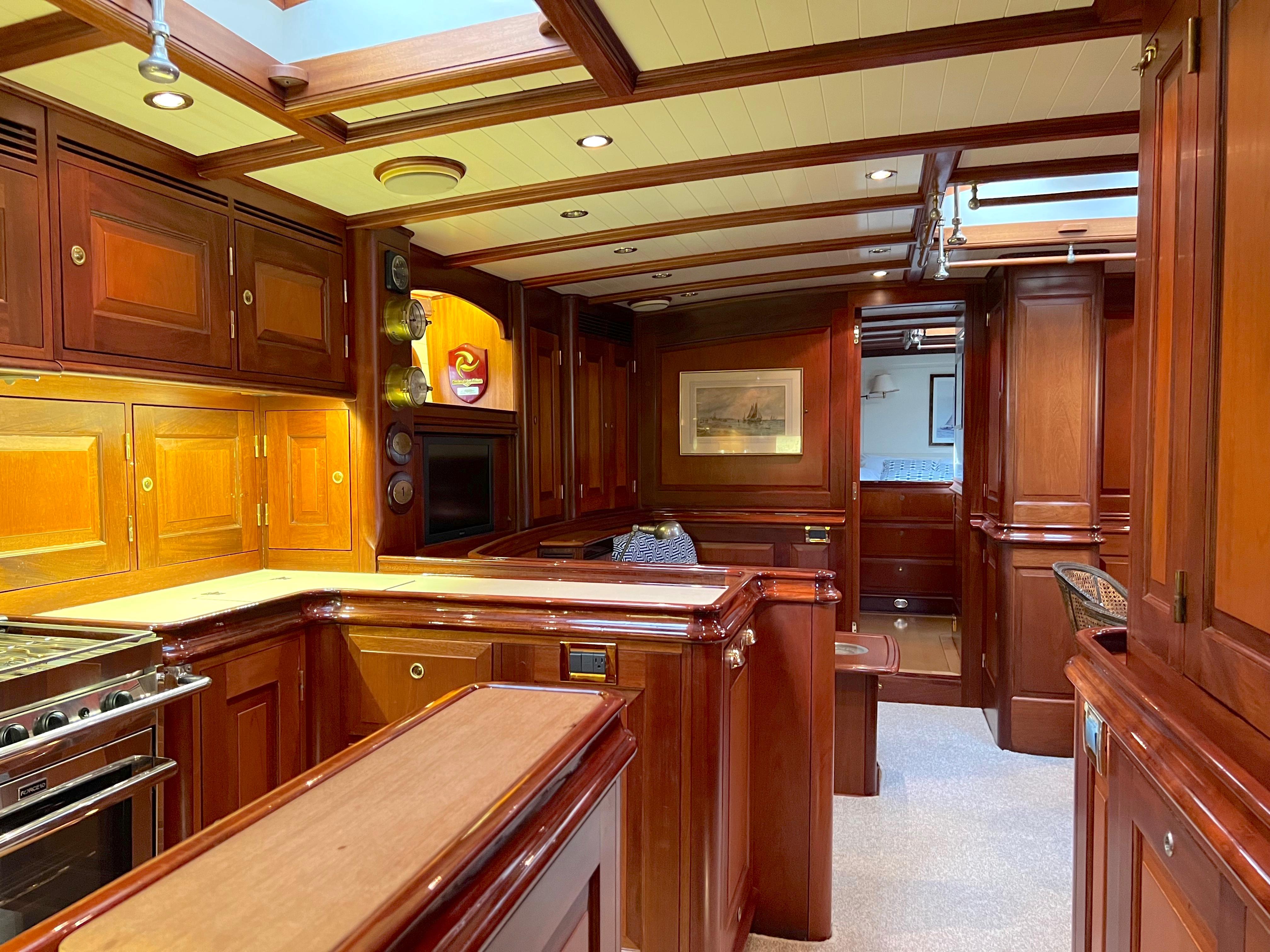

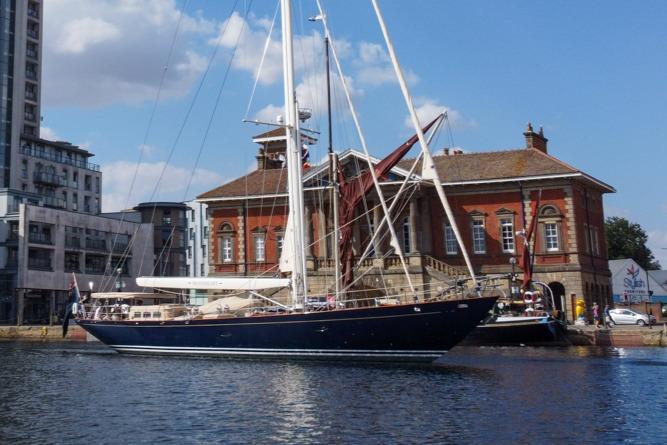

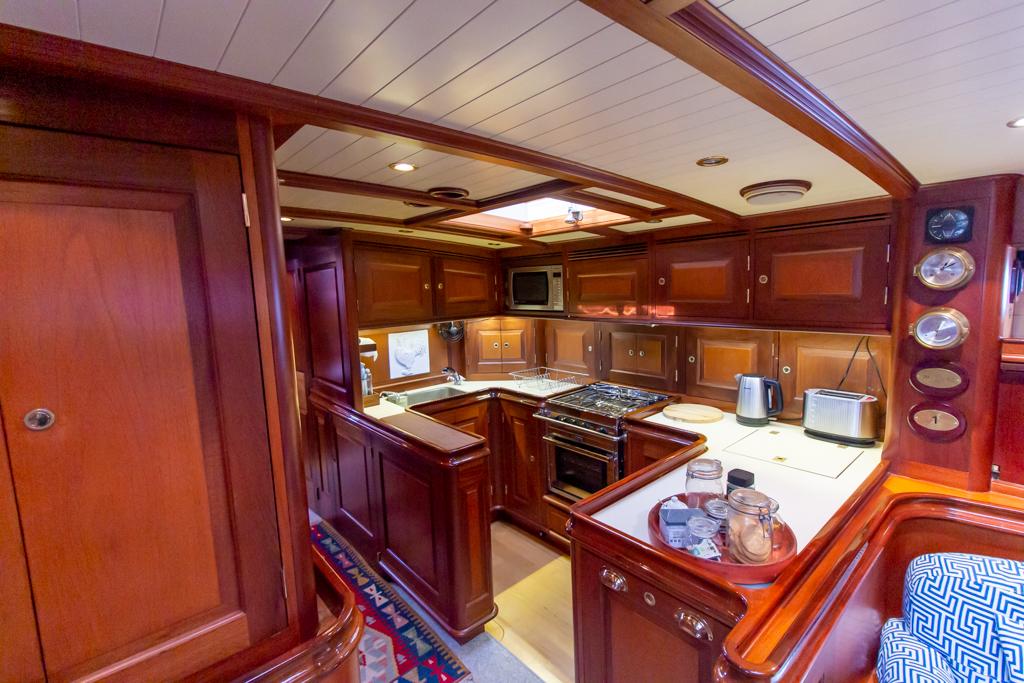

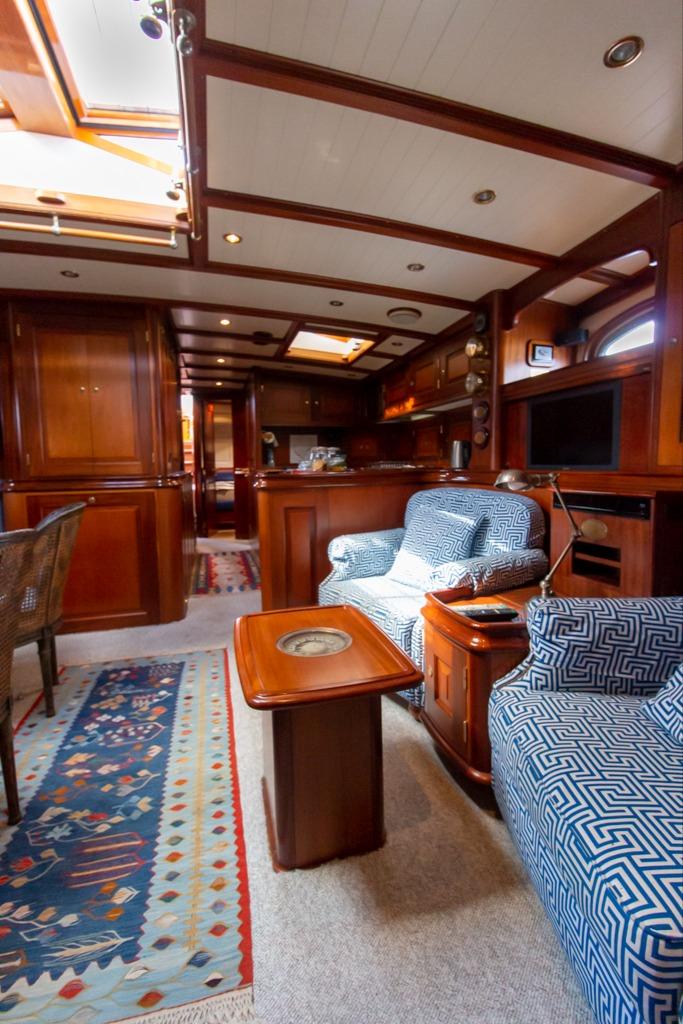

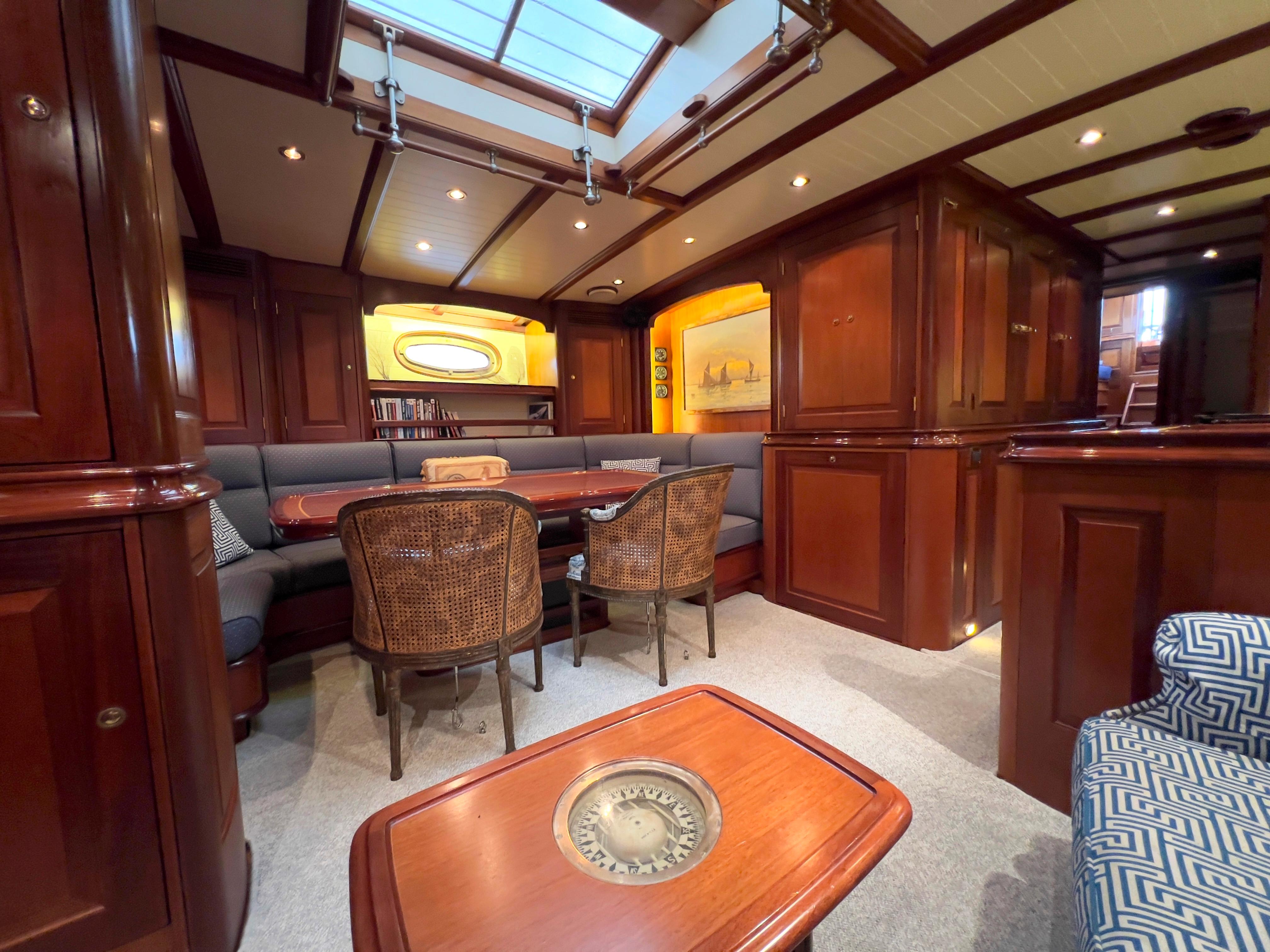

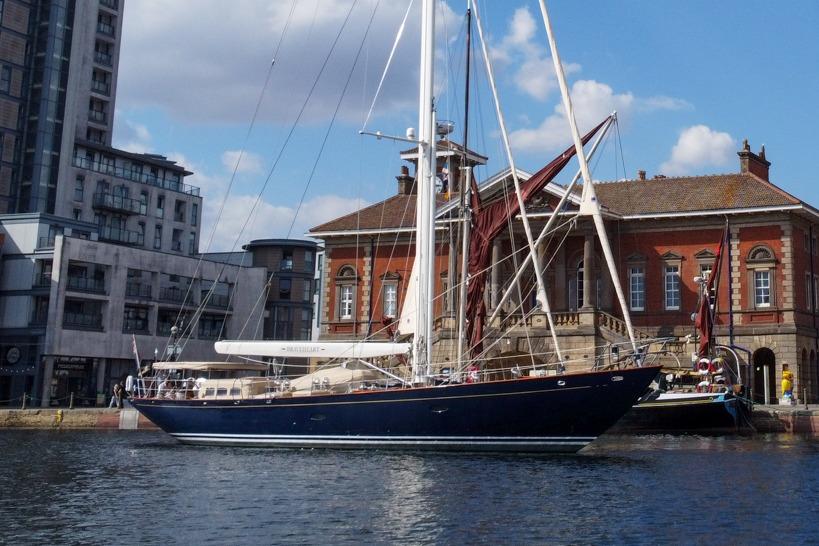

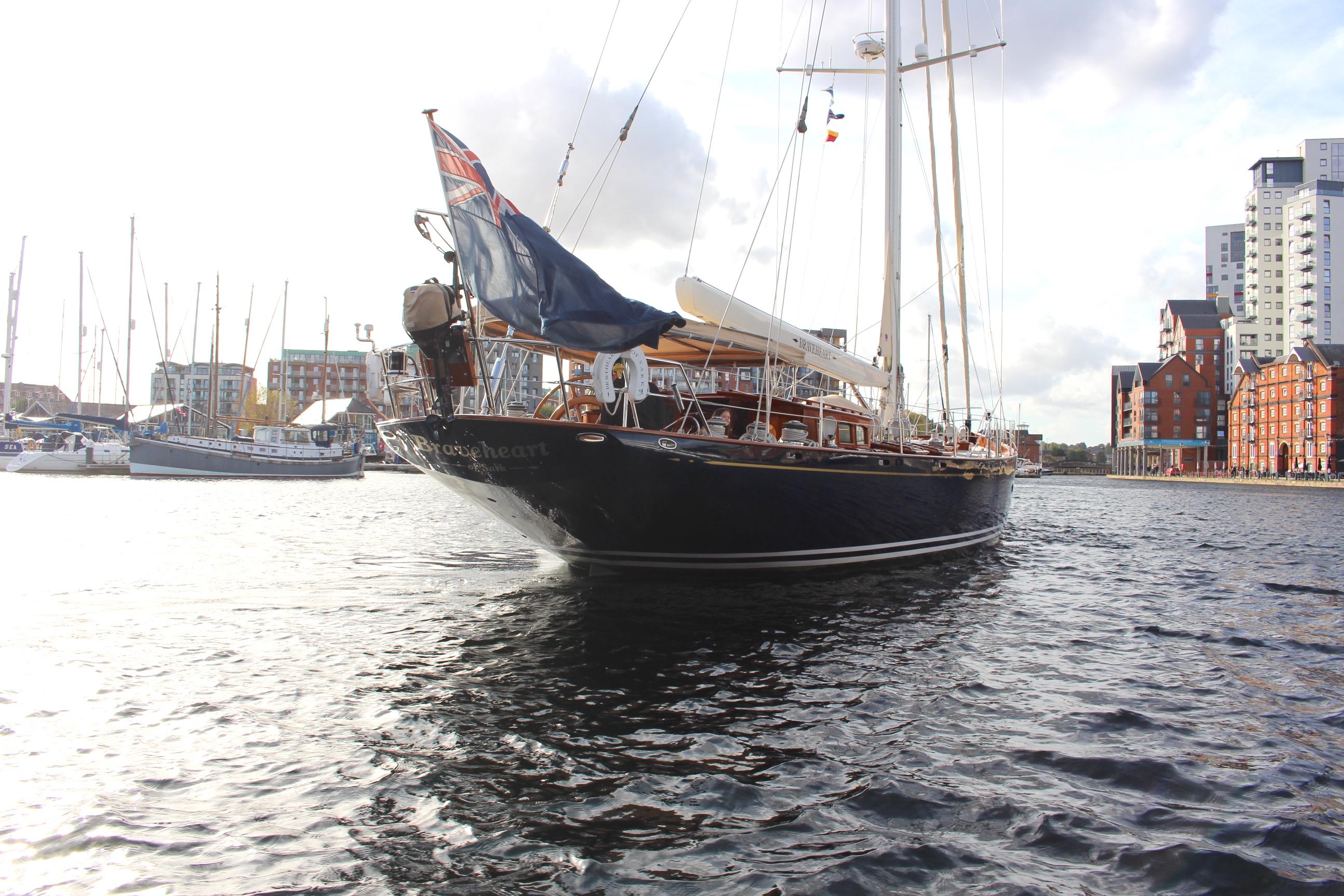

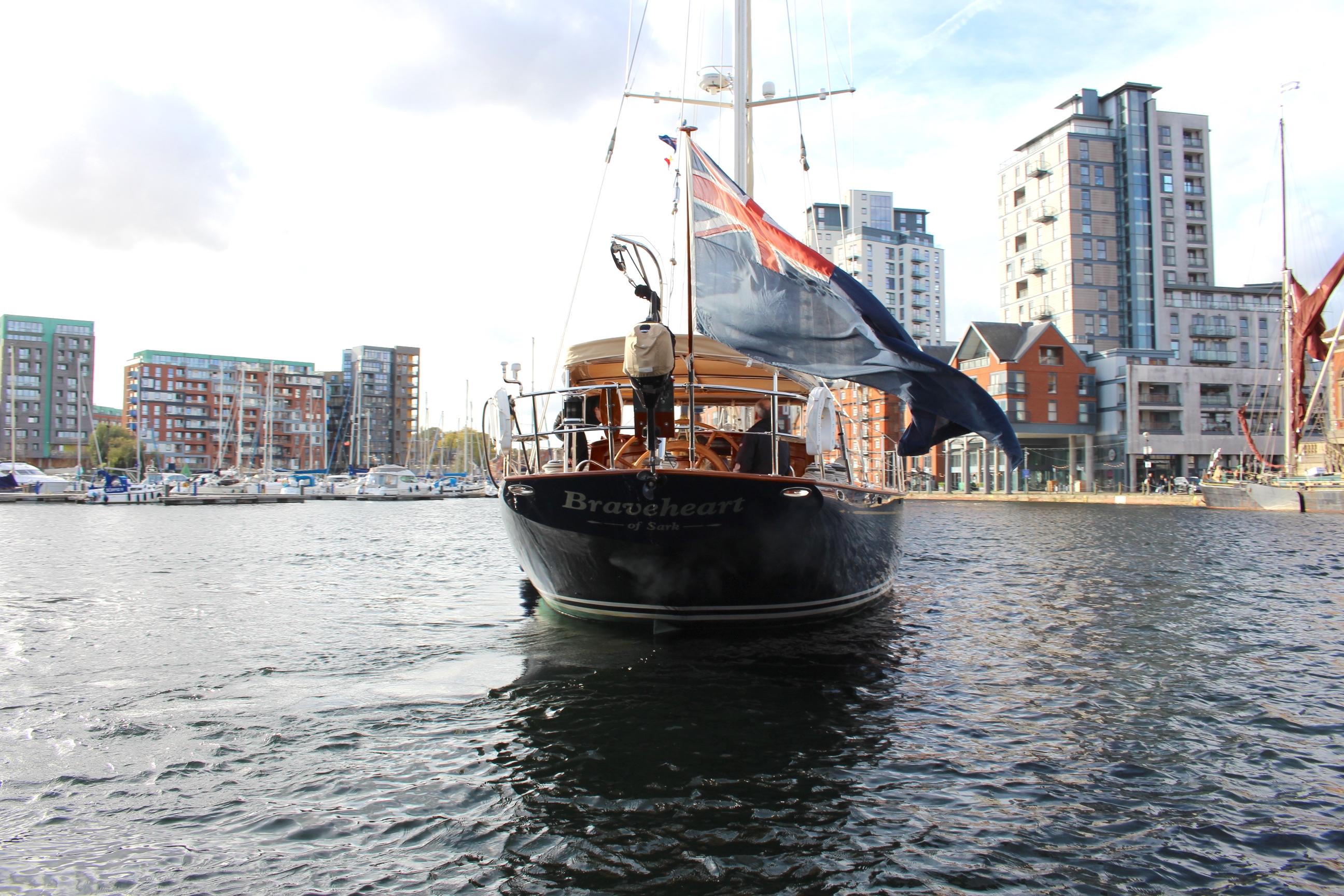

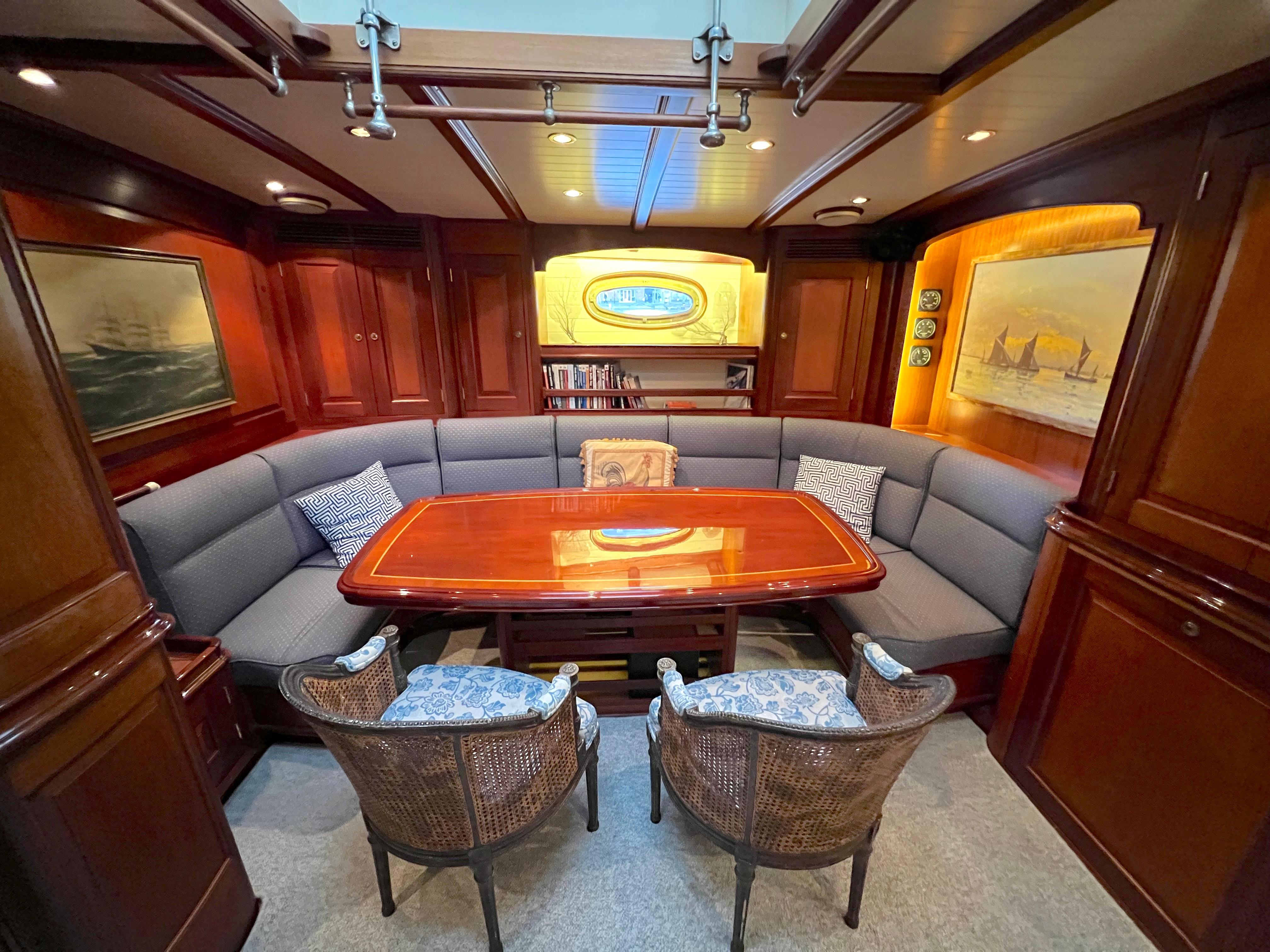

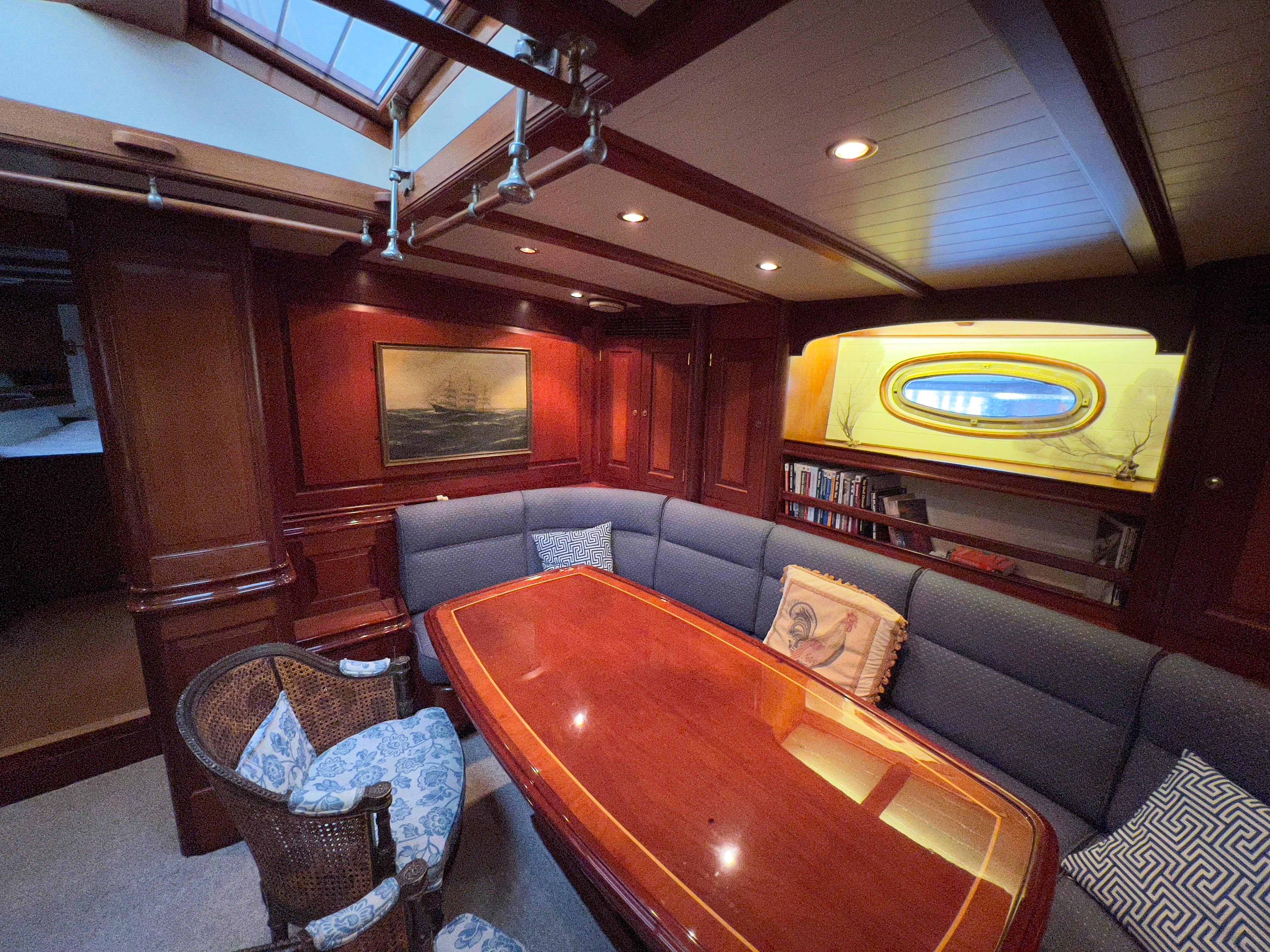

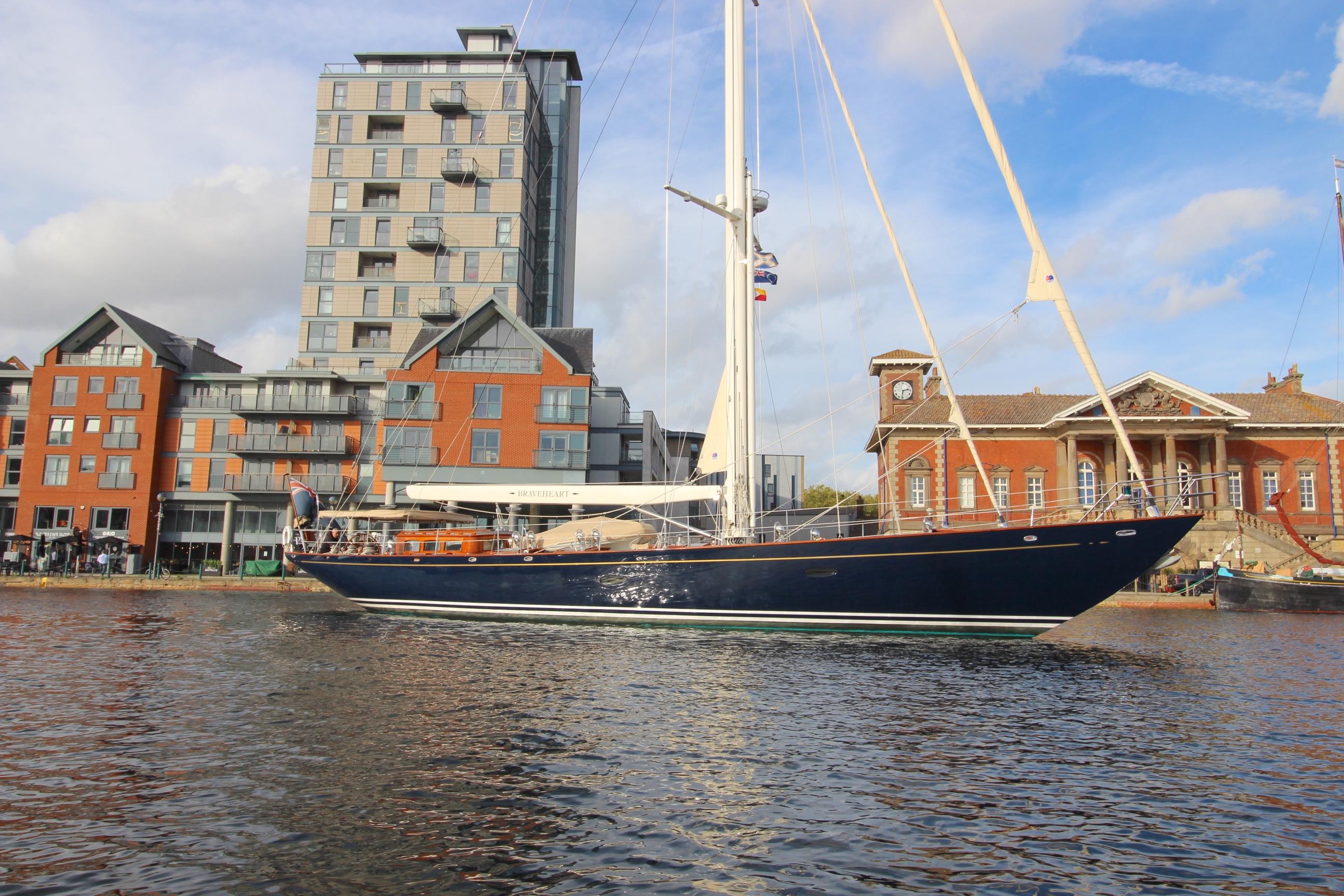

Hoek Design Truly Classic 75 (TC-75). BRAVEHEART This is the first Truly Classic 75 and is fitted with a sublime Mahogany interior with custom fittings and finish. Braveheart won the ‘Most Beautiful Yacht’ award at the 30th Edition ARC and it is easy to see why this stunning and lovingly maintained yacht was a clear winner. The engine room, engine and systems were rebuilt and refitted 2018/19 at a cost of €200,000 and the decks were re-caulked in 2020. Up-to-date navigation equipment, Carbon fibre mast and boom and a mechanical overhaul are just some of the plus points of this majestic yacht.
TV SET
BATTERY CHARGER
HEATING
FURLING MAINSAIL
BIMINI TOP
FRESH WATER MAKER
MANUAL BILGE PUMP
FURLING GENOA
RADAR
WIND SPEED AND DIRECTION
ELECTRIC HEAD
REFRIGERATOR

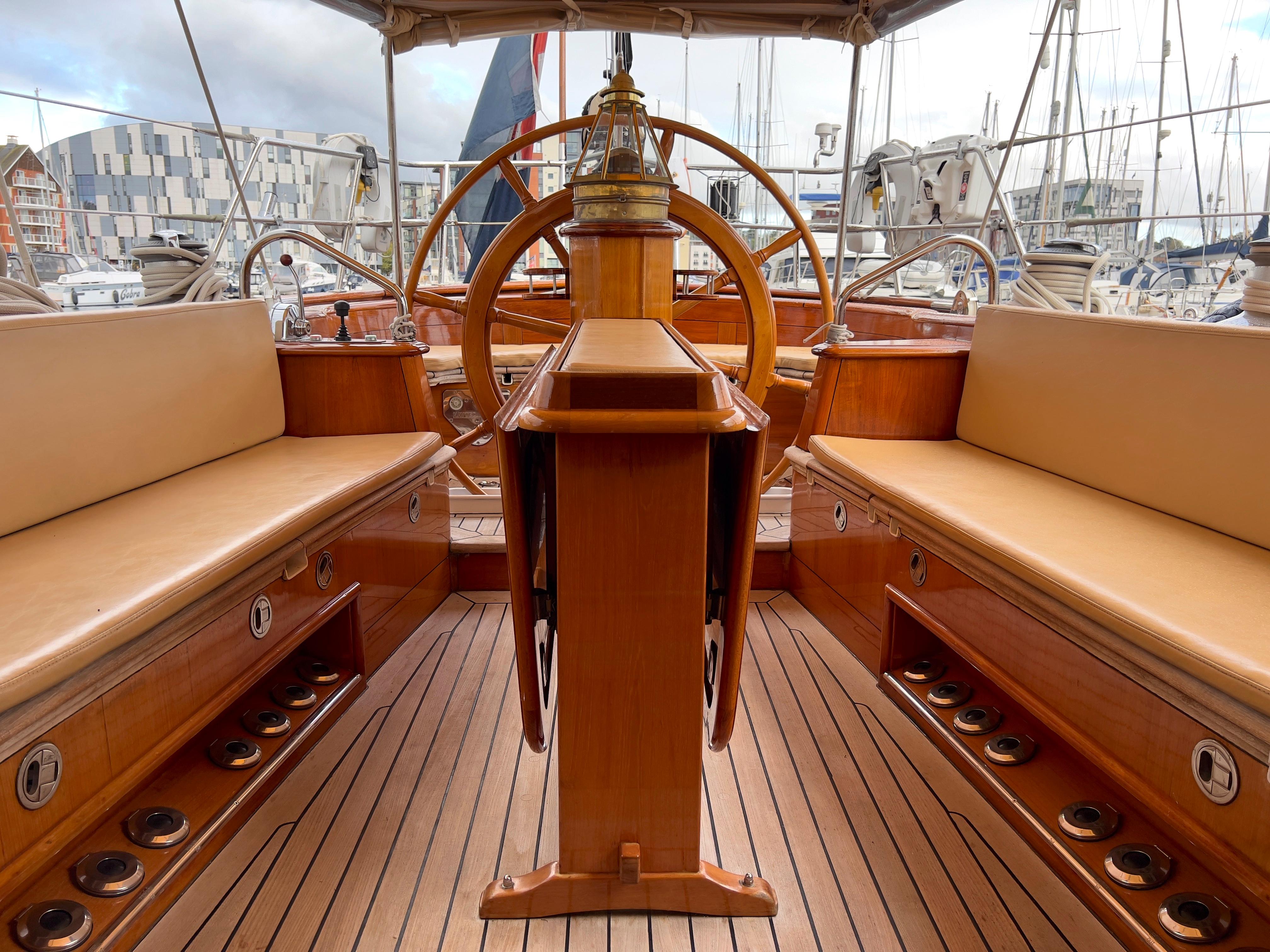

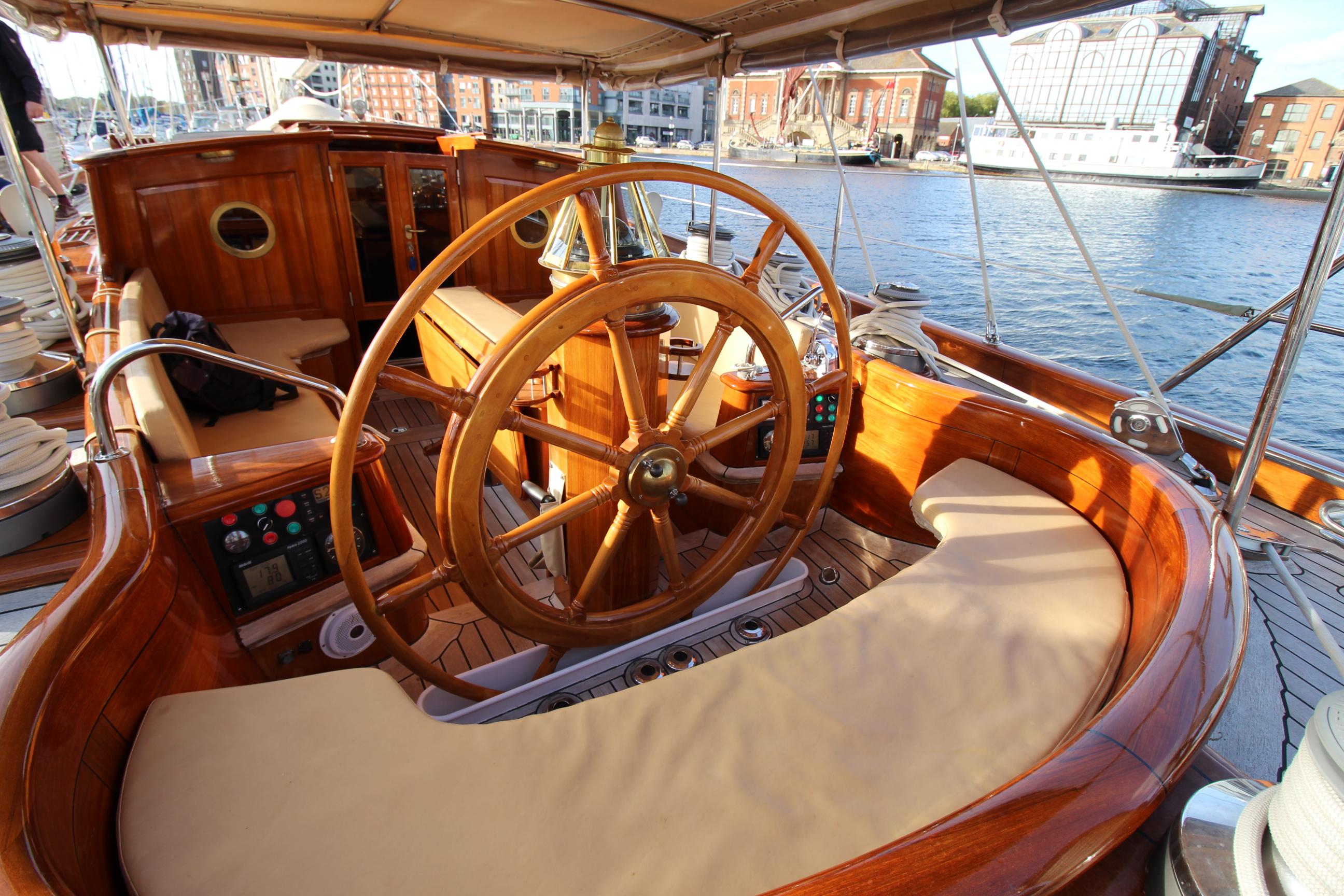

STEERING WHEEL
TEAK SIDEDECKS
AIR CONDITIONING
COCKPIT CUSHIONS
SPRAY HOOD
SPINNAKER
LOG SPEEDOMETER
STORM JIB
DEPTHSOUNDER
VHF
GENERATOR
PLOTTER

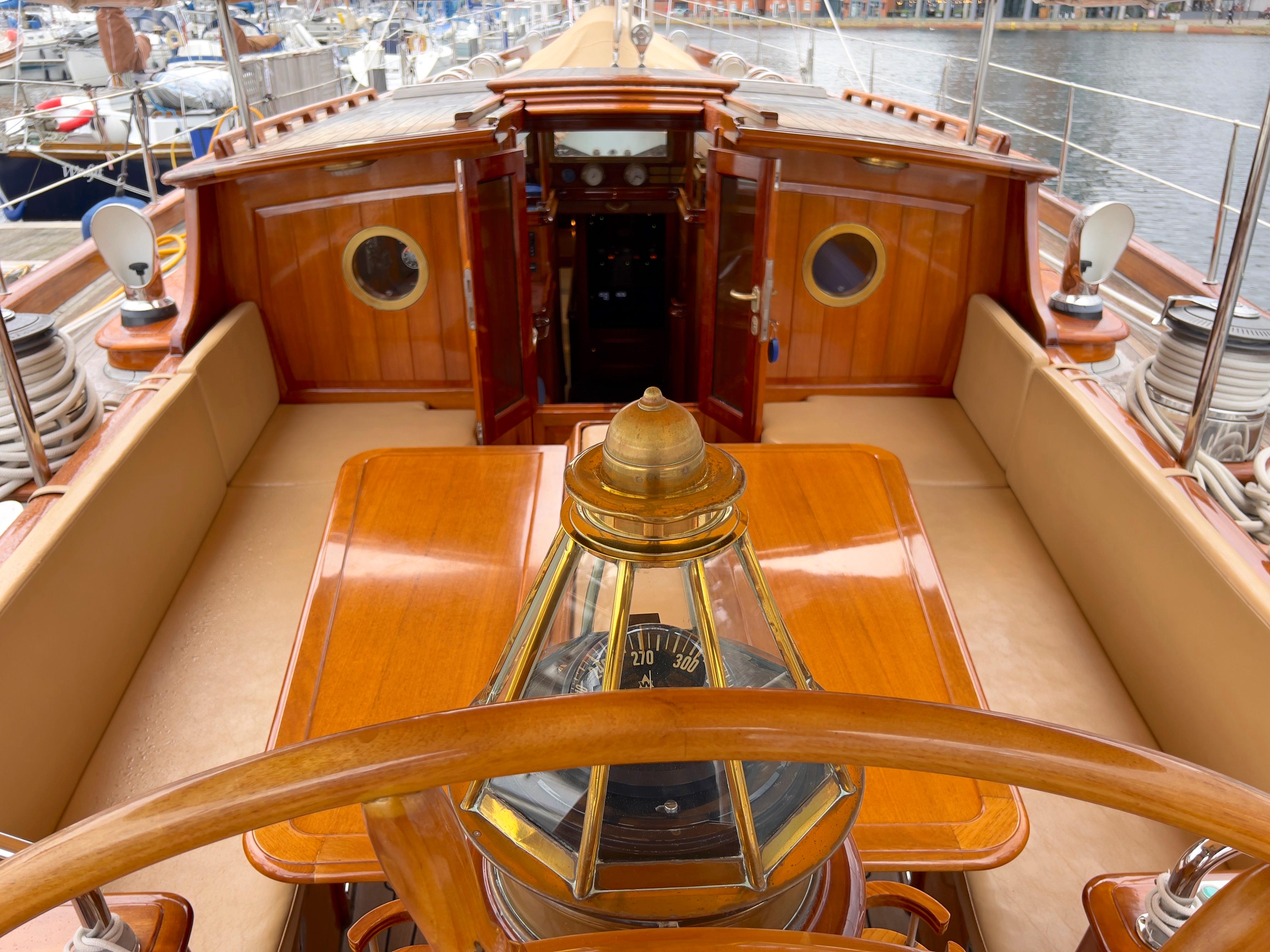

COMPASS
BOW THRUSTER

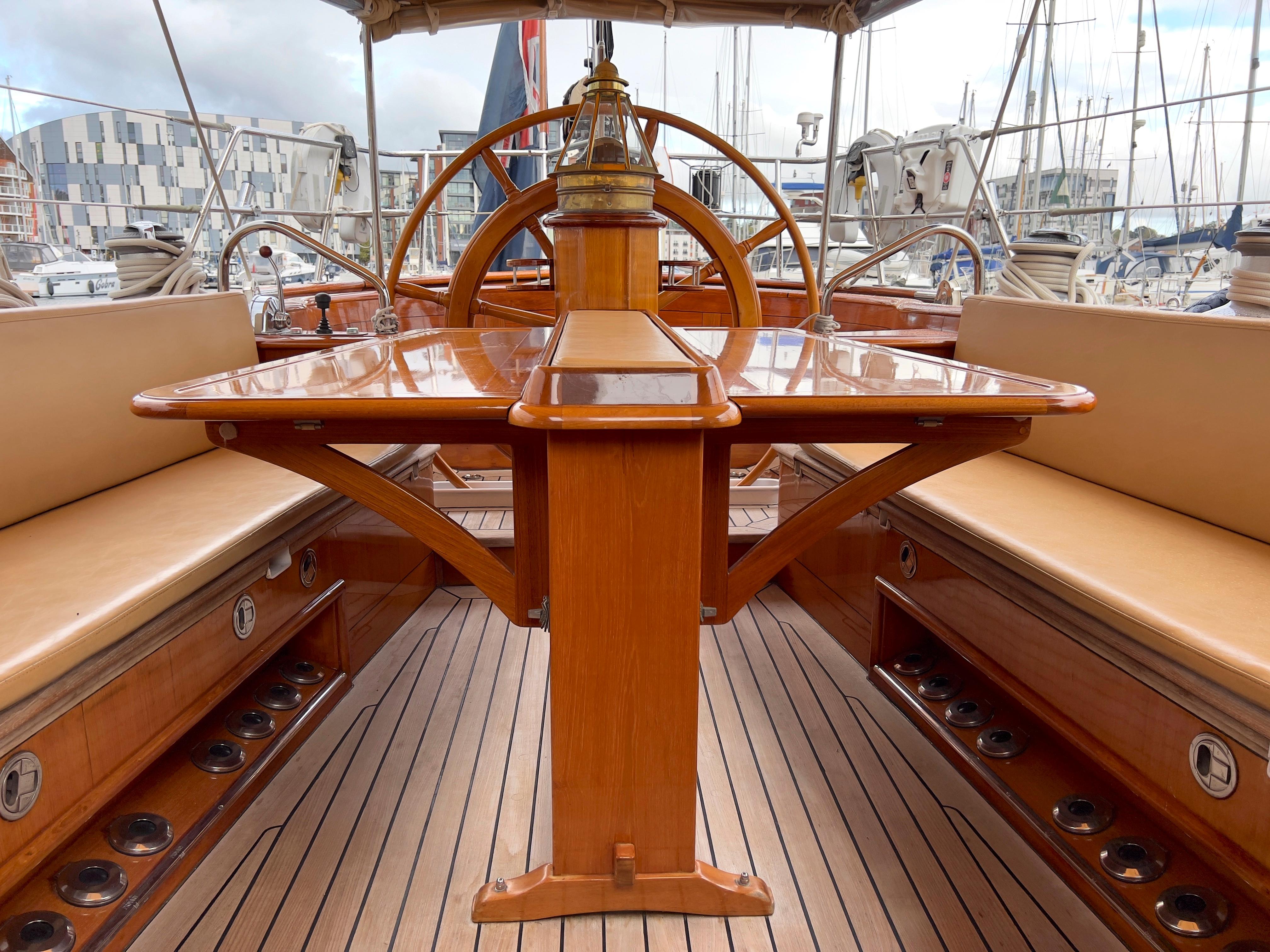

COCKPIT TABLE
HYDRAULIC WINCH
NAVIGATION CENTER
COCKPIT COVER
AUTOPILOT
SHORE POWER INLET
GPS
LIFERAFT
DEEP FREEZER
ELECTRIC BILGE PUMP
MICROWAVE OVEN

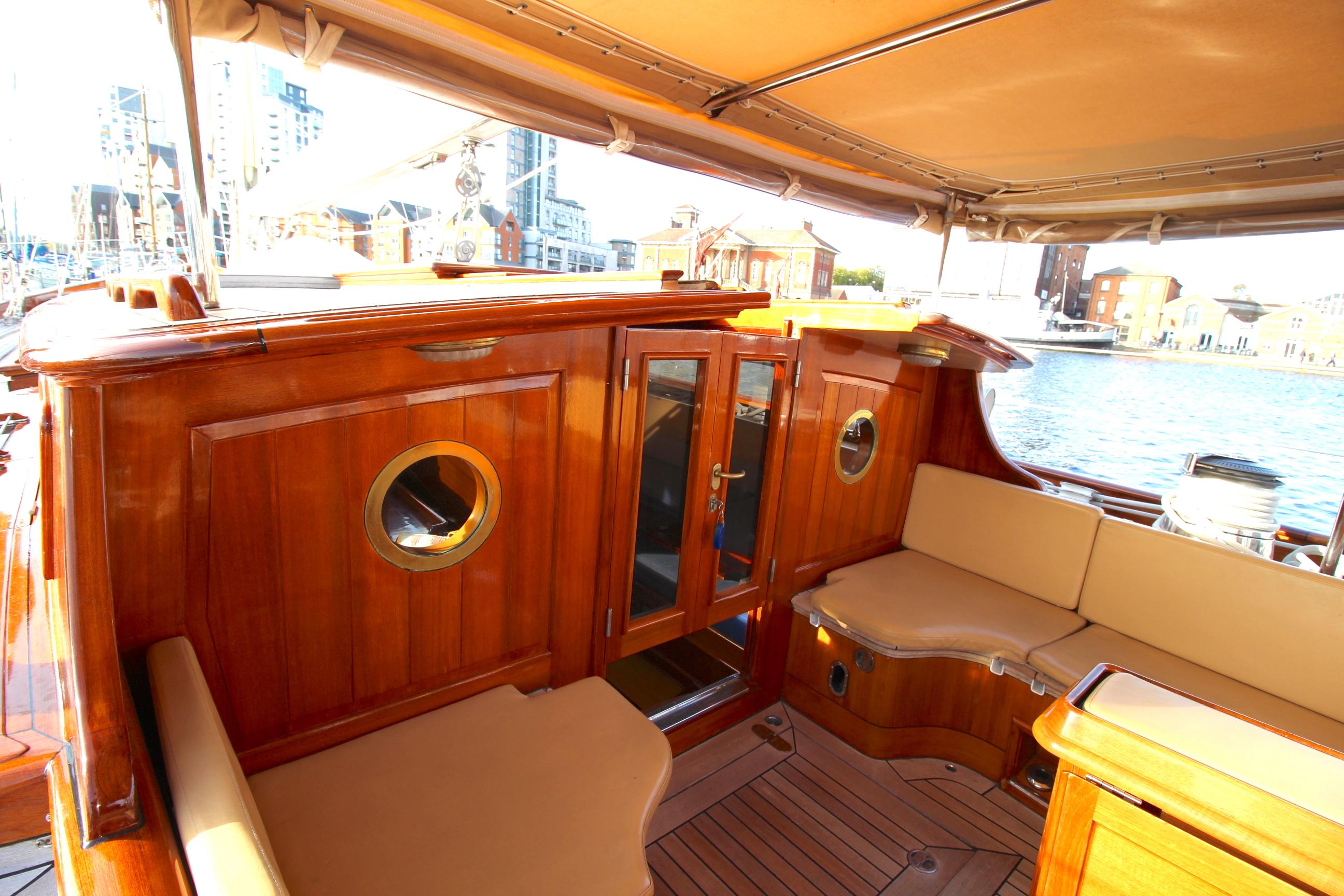

TEAK COCKPIT
HOT WATER
OVEN The Most Beautiful Yacht is a notable award in that it is voted on by other ARC participants. That year there was a very clear winner, The beautifully maintained Truly Classic 75, Braveheart of Sark. A fitting award as the owner was one of four skippers from the first ARC in 1986 back sailing in the 30th Edition
Engine – MTU 6 cylinder, 240hp diesel engine rebuilt in 2019 at 10,355 hours, currently 11,415 hours Last serviced 2022.
Fitted to a Twin Disk gearbox, a Stromag coupling to a 80mm shaft and Hundersted propeller.
Genset – Northern Lights N844L. 230V up to 66 amps, 50Hz up to 16kW. The diesel end of the generator was replaced in 2002 (4 cylinder 2,2l)
Lewmar power pack running Hydraulic windlass and hydraulic sail functions
Bow thruster – Naiad 12HT hydraulically driven. Pump rebuilt in 2018
Water: Port – 800 l, Starboard – 800 l
Fuel: Port – 750 l, Starboard Fwd – 550 l, Starboard Aft – 300 l, Day tank – 100 l
Black: 370 l
Gray: 250 l

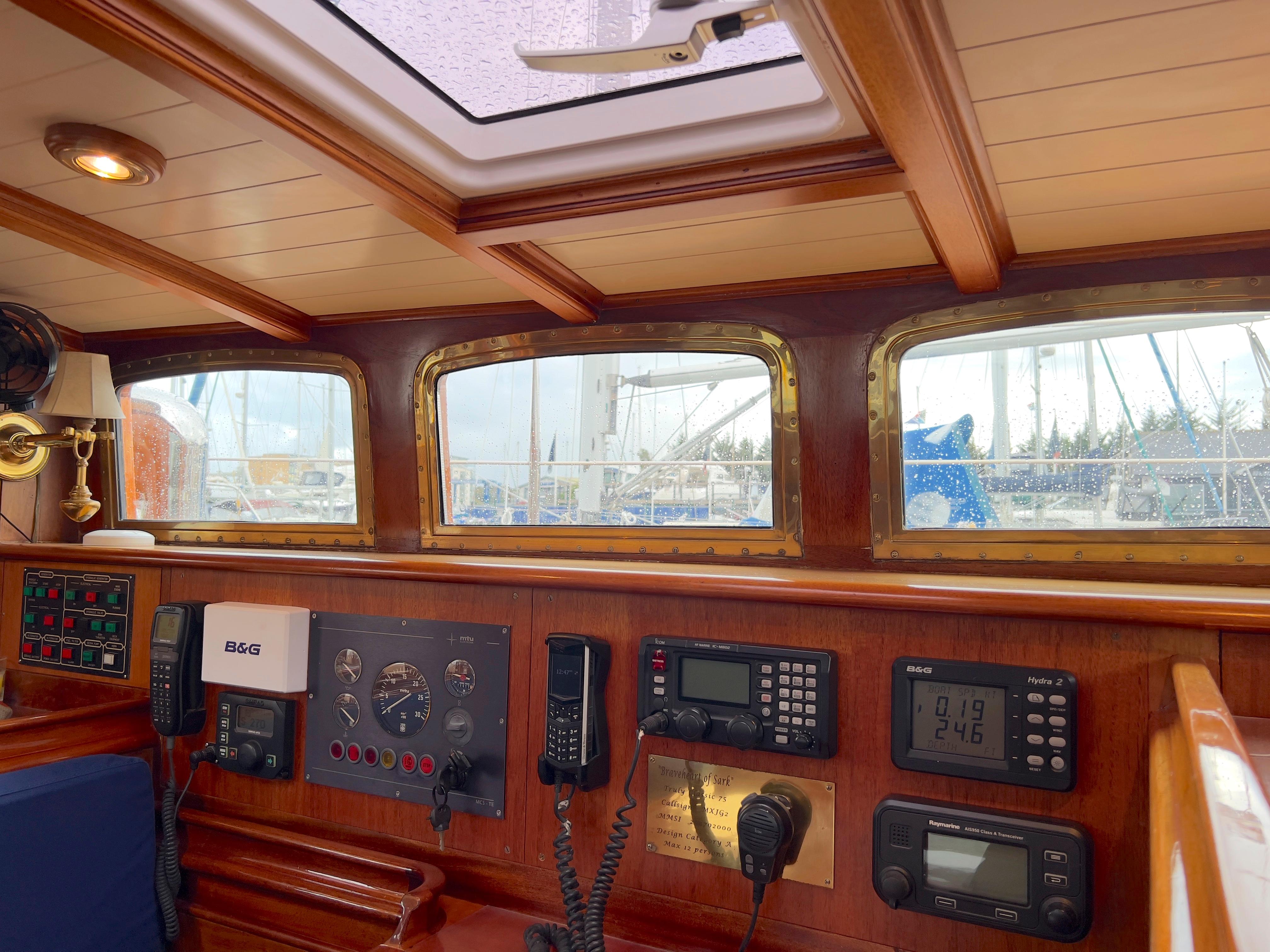

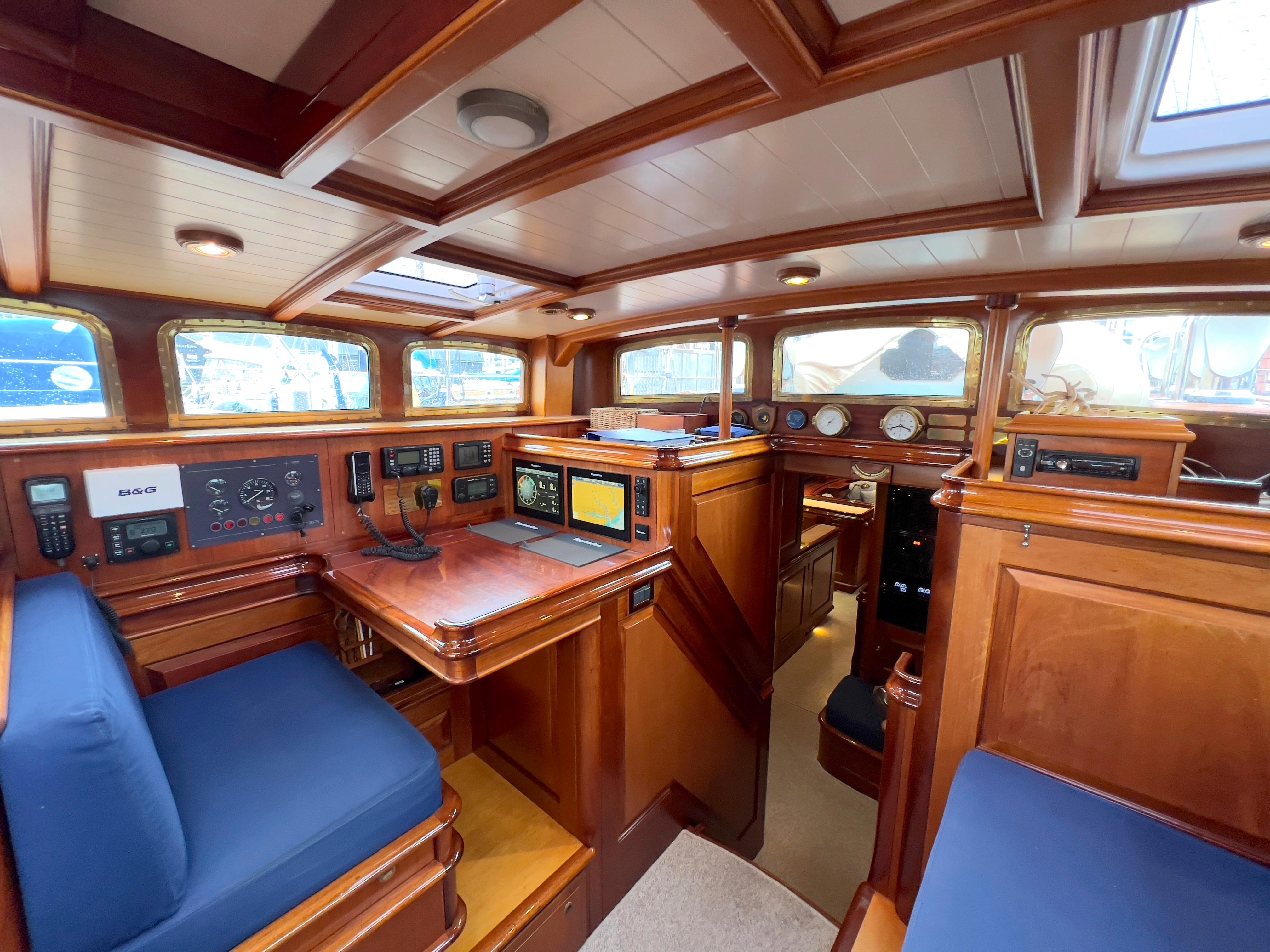

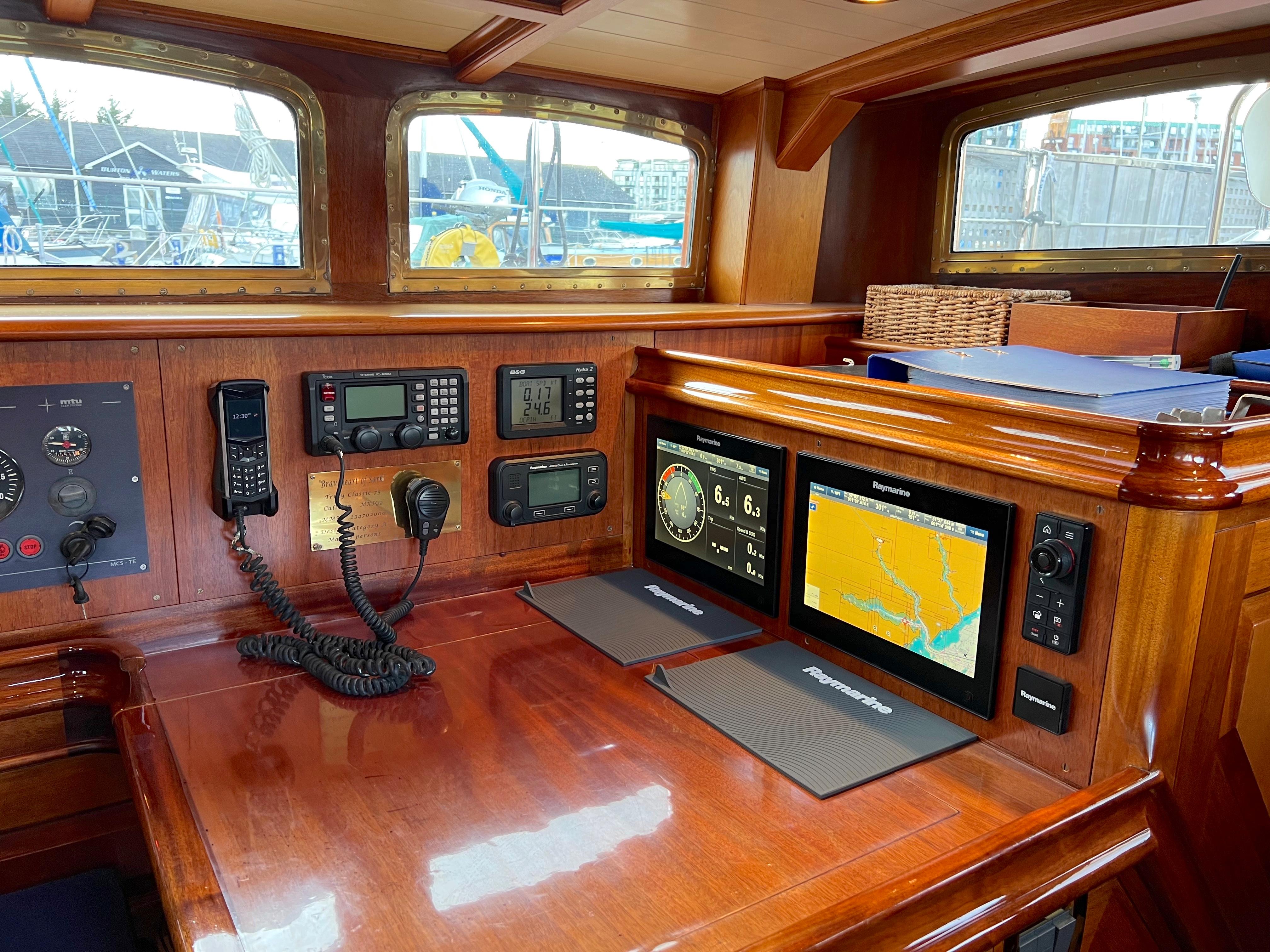

Chart and radar displays – Raymarine GS125 MFD’s fitted April 2018
GPS – Raymarine RS150 antenna
Wind speed and direction – Mast head anemometer and vane
Boat speed – Sonic log

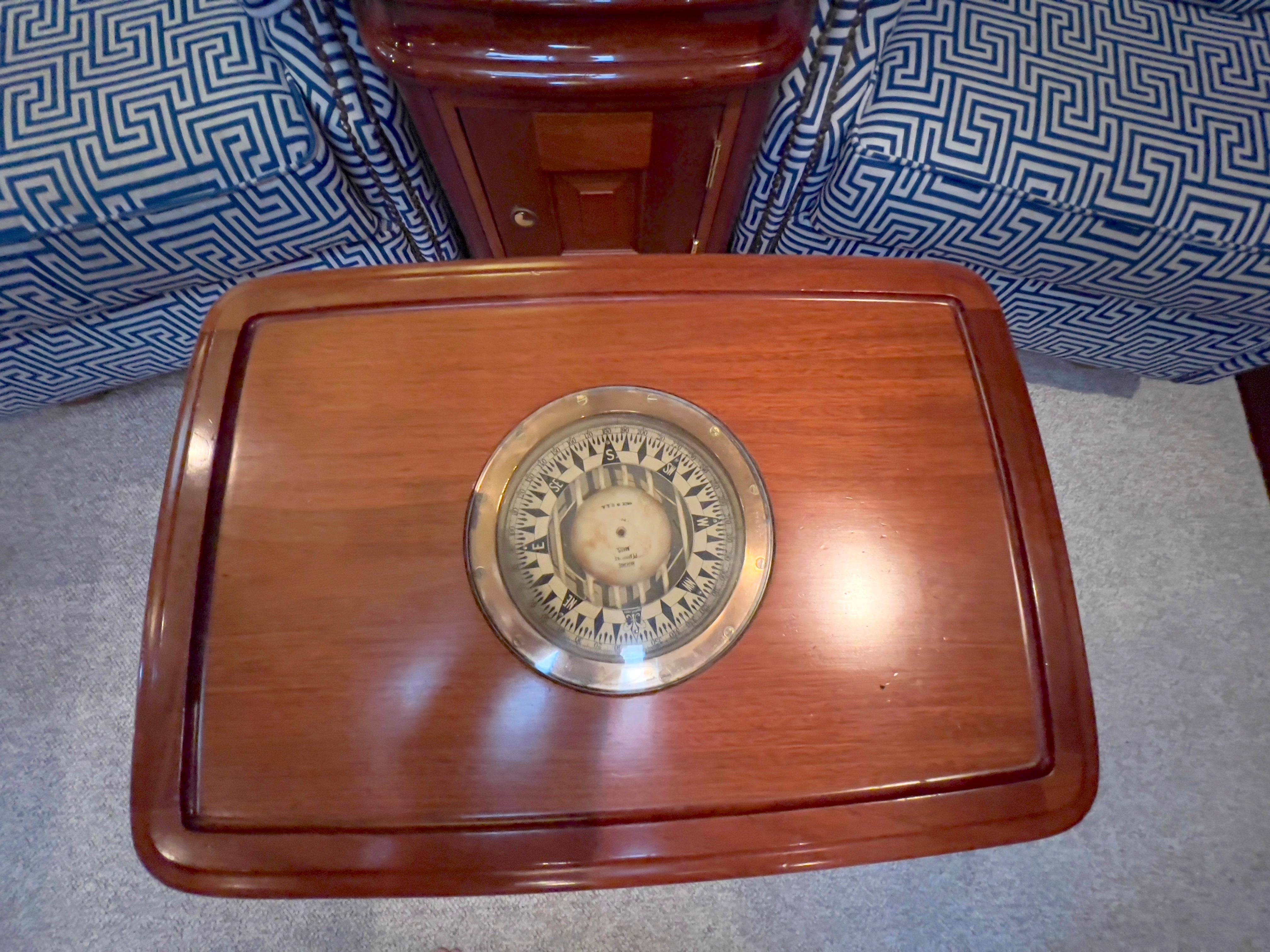

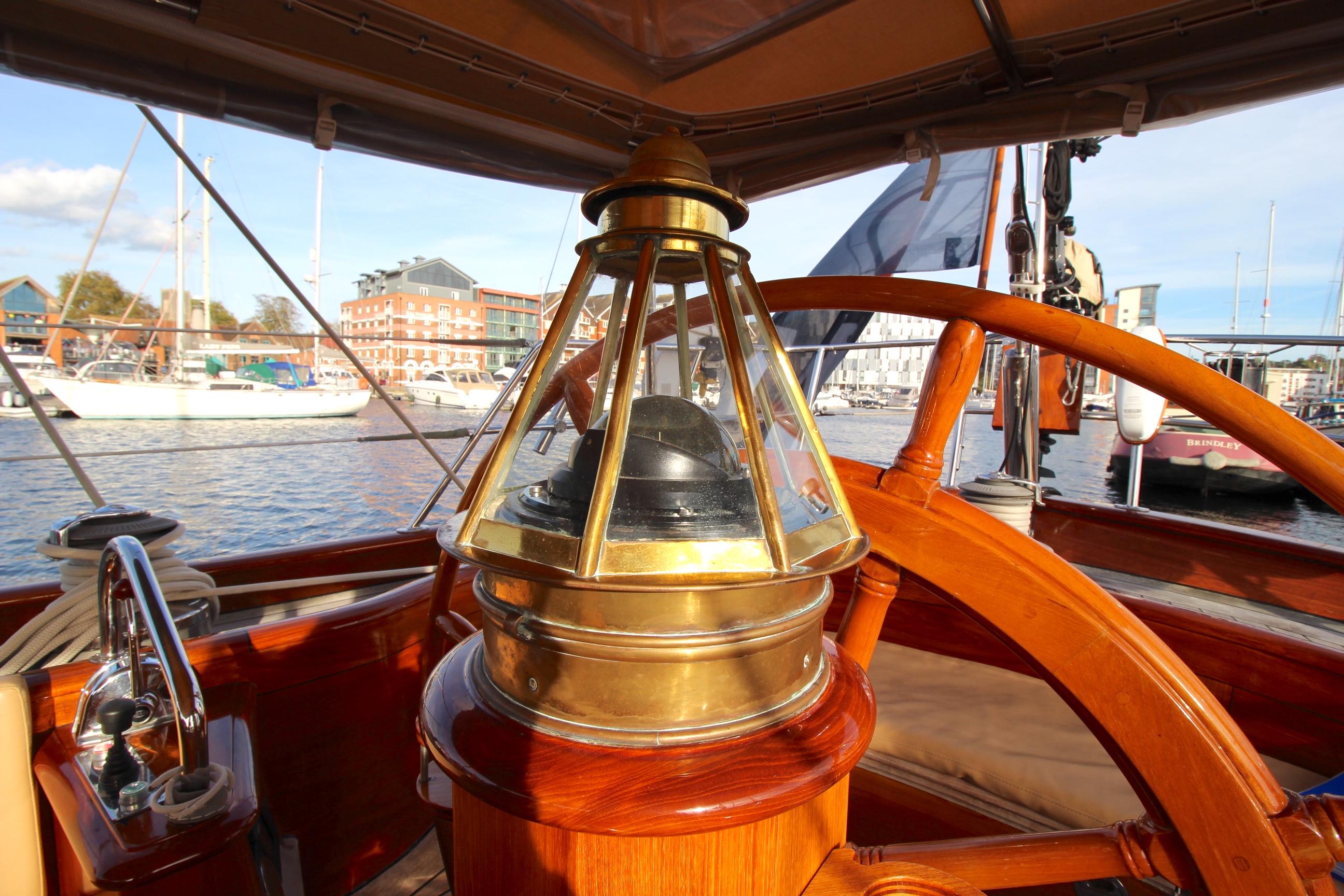

Heading – Halcyon 2000 compass
Depth – Transducer
Auto pilot – Simrad Auto Pilot, back up B&G Hydra Pilot
VHF – ICOM M802 SSB
VHF Handheld
GPS Handheld
Heading compass – Furuno FG500
Offshore Comms – Inmarsat Launchpad, Sailor, Iridium Sat Phone

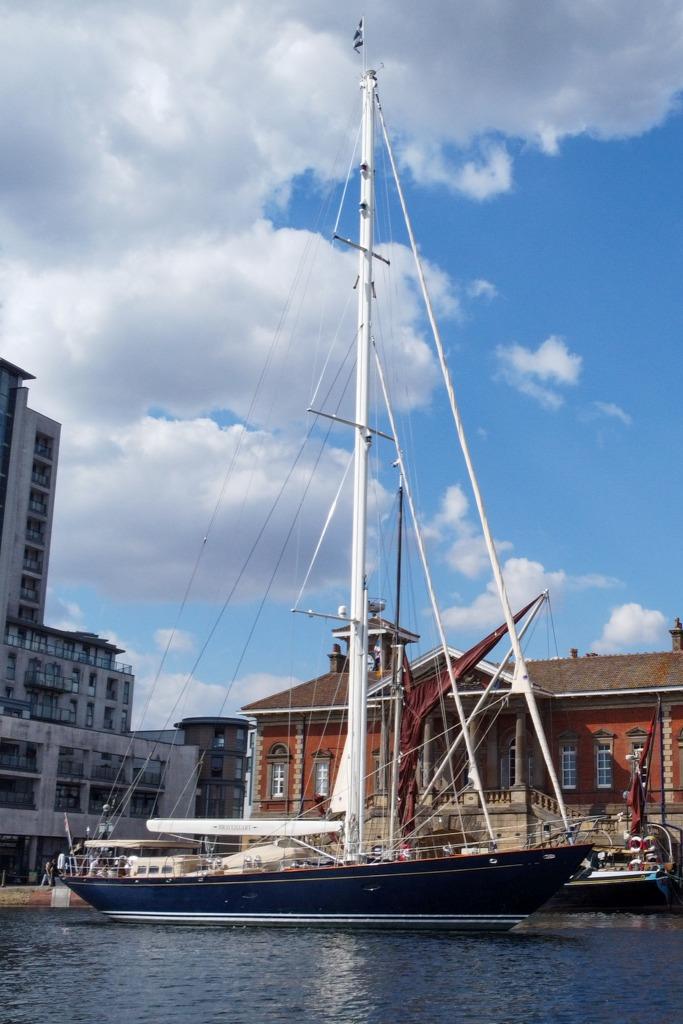

Mast and boom – Carbon fibre Ohmohundro with Harken 42mm Mini-Maxi track
Navtec manual hydraulic Vang and Backstay tensioner
Genoa and Staysail furlers – Reckman hydraulic
Mainsail furler – Reckman hydraulic
Rod rigging – Last inspected 2022
Spinnaker pole and reaching strut

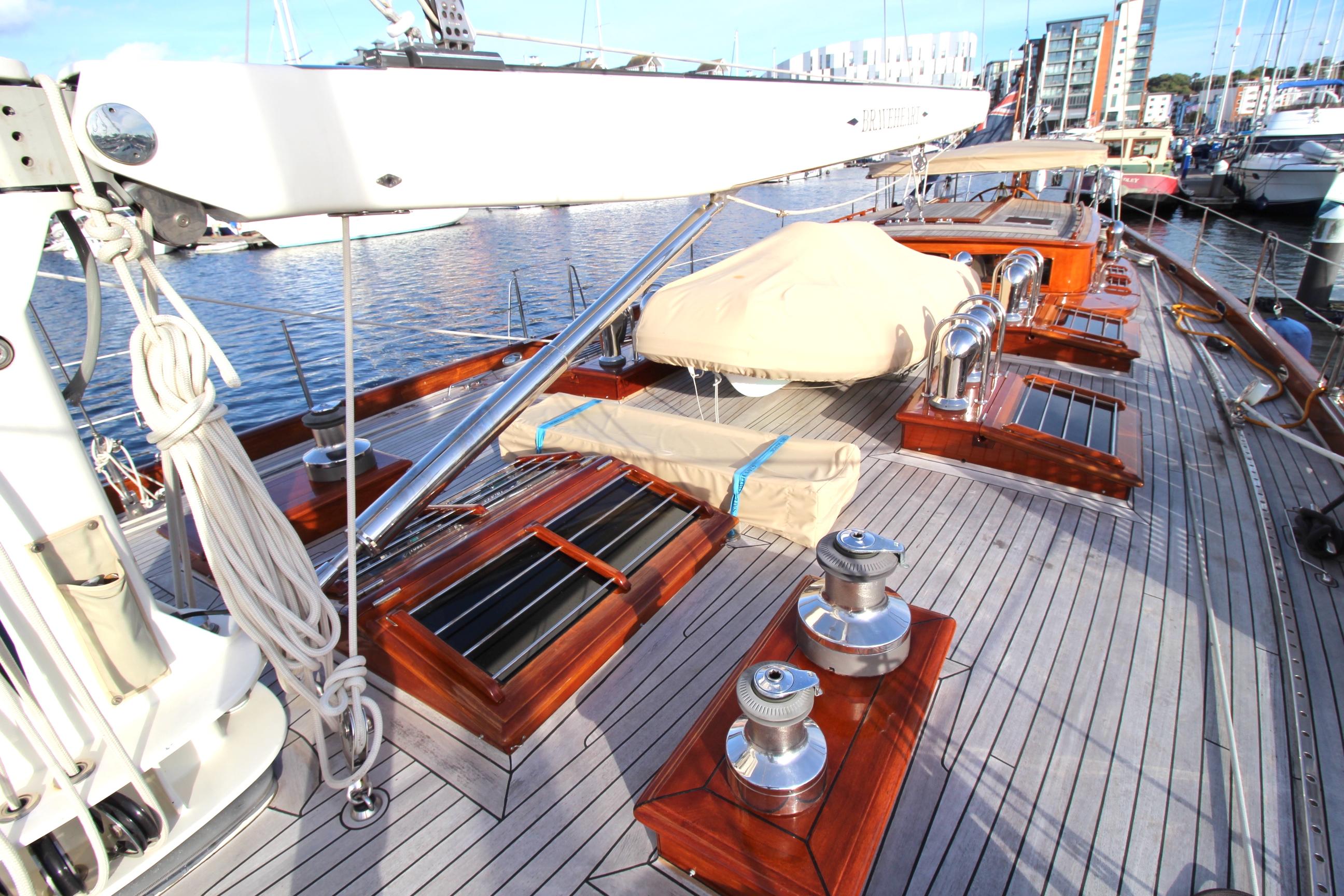

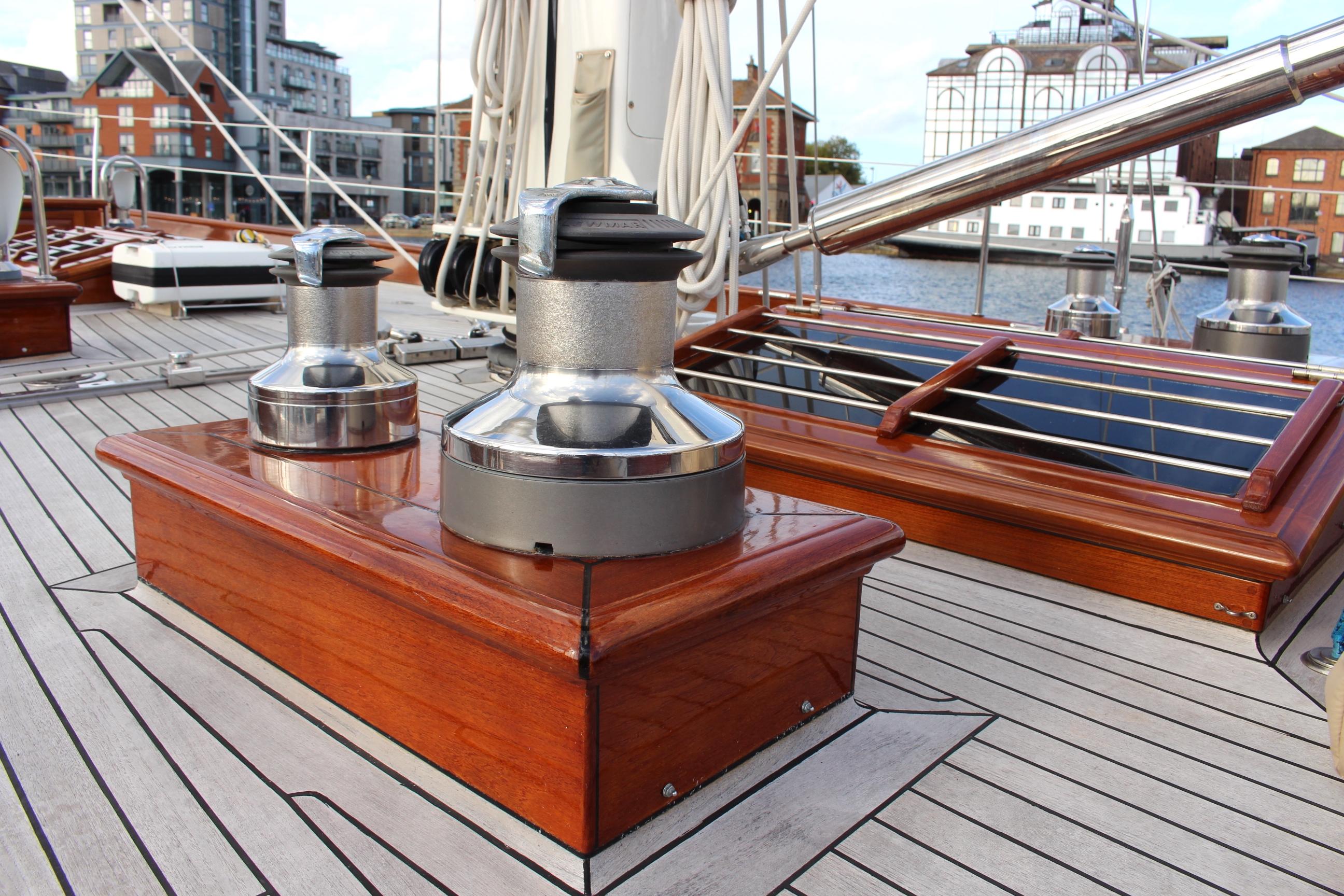

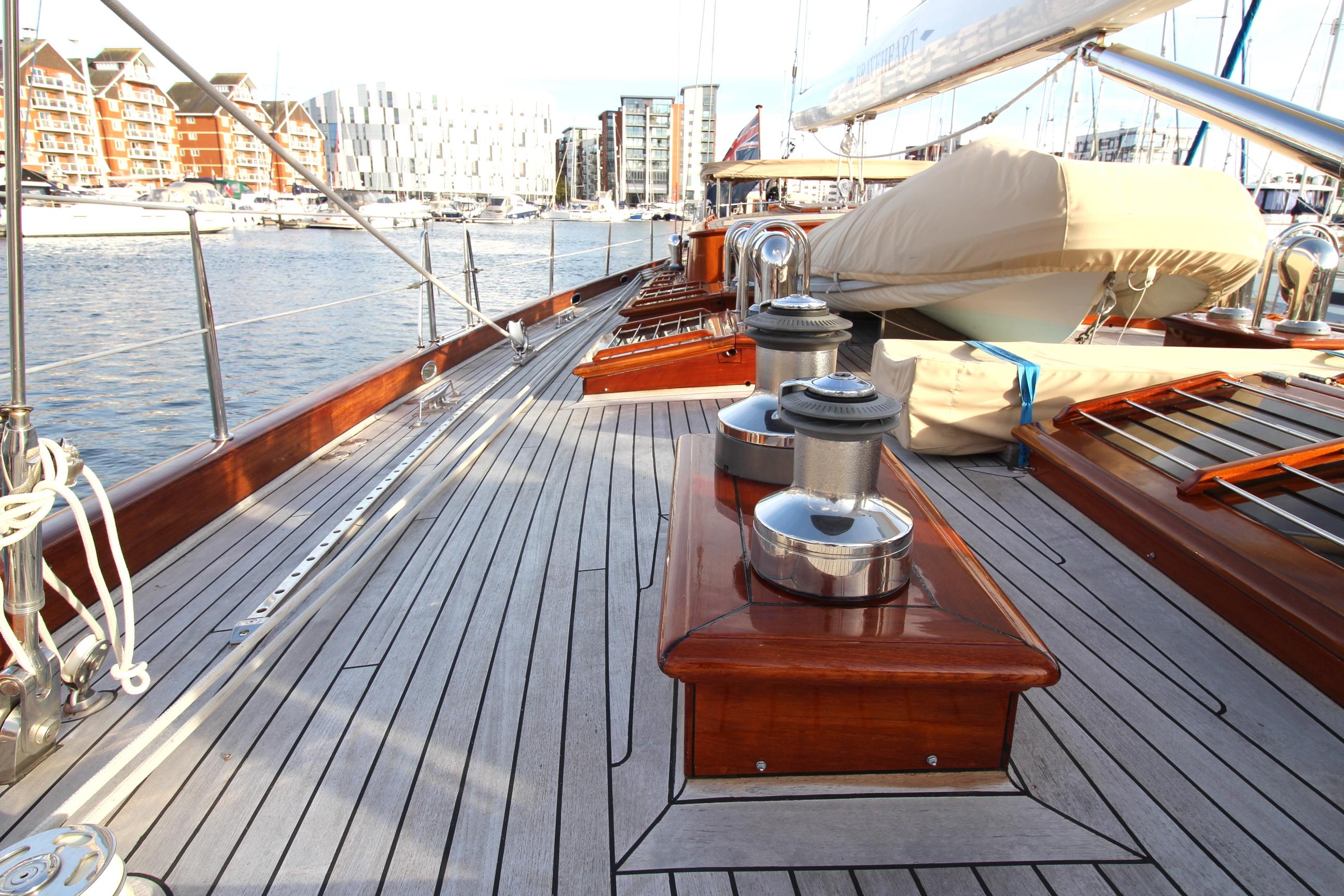

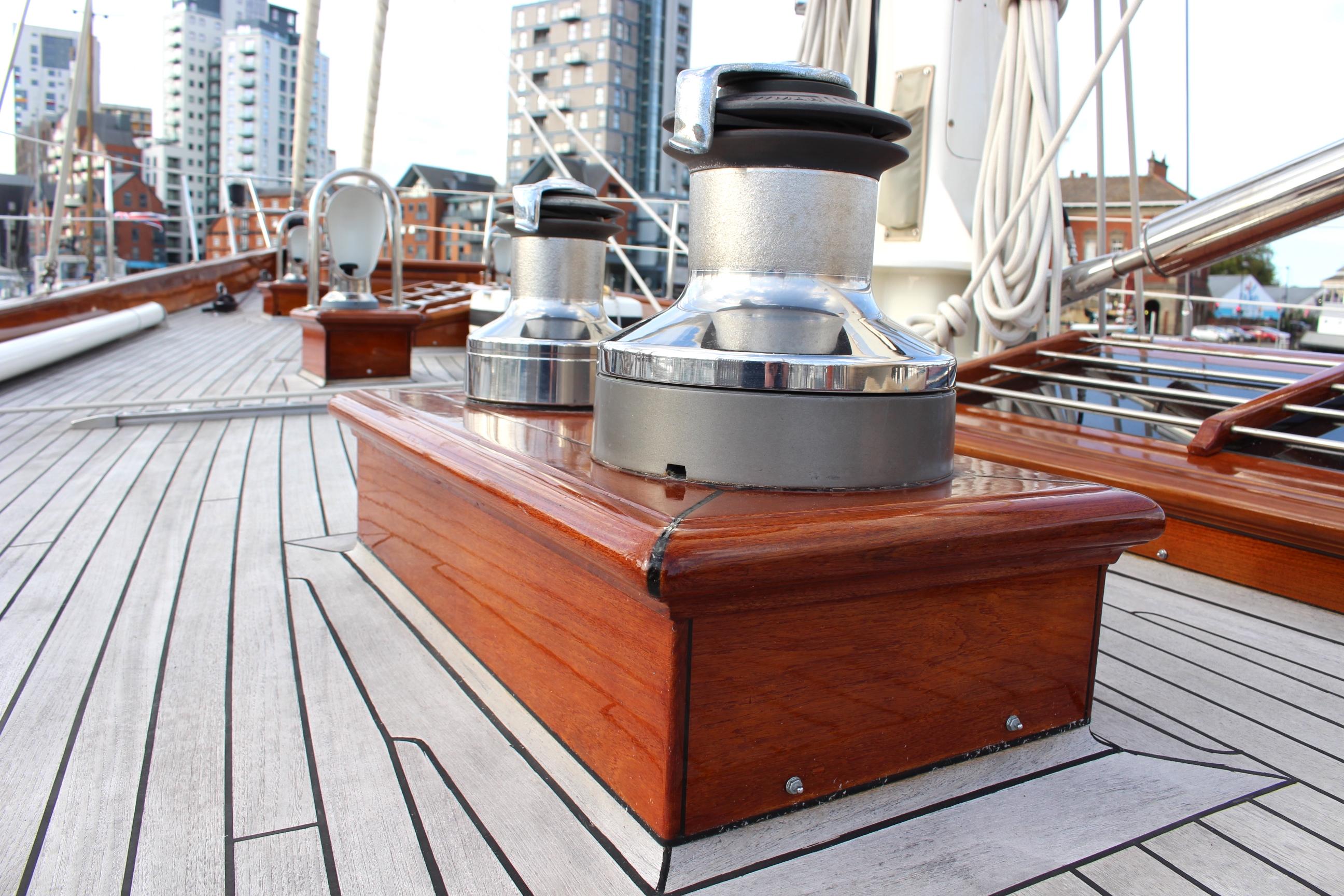

Lewmar Ocean series 2 speed self tailing all overhauled 2018
COCKPIT:
2 x 88 hydraulic – Genoa sheets
2 x 66 hydraulic for main sheet and staysail
2 x 66 manual for running backstays
1 x 66 hydraulic for mainsail outhaul
FORE DECK
Port side
1 x 54 manual
1 x 66 manual
Starboard side
1 x 54 manual
1 x 66 manual
Windlass – Lewmar 4000
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
